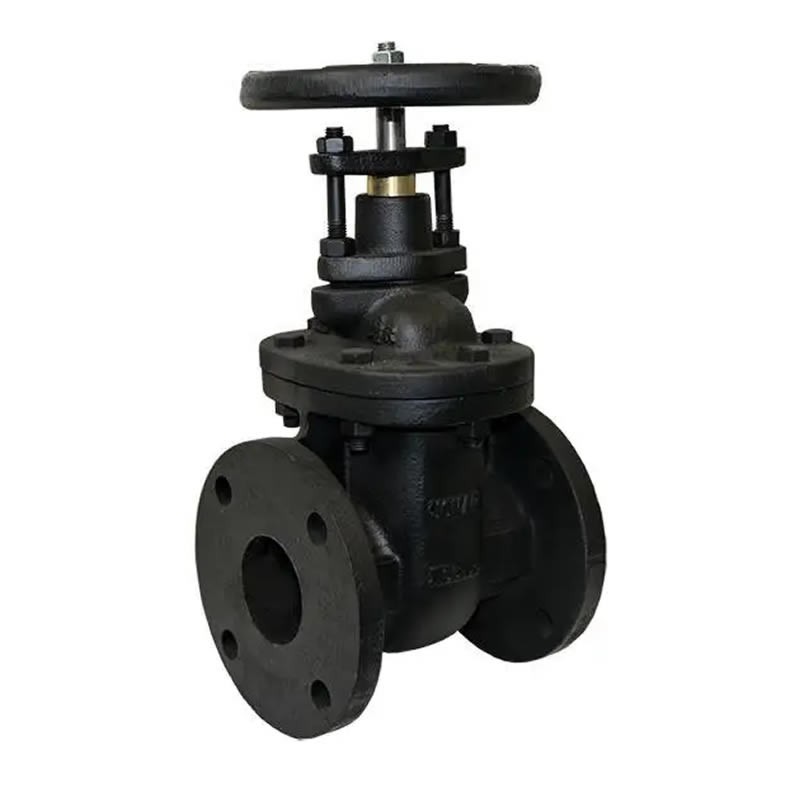

Jomar F-351 Cast Iron Gate Valve Non-Rising Stem Solid Wedge Bolted Bonnet Outside Screw Class 125 Flange
F-351
The Jomar F-351 Cast Iron Hand wheel Operated Gate Valve features a Solid Wedge with Non-Rising Stem, Lead Free Bronze Seat Ring with a pressure rating class 125, 125 PSI, Lead Free Bronze Seat Ring, Flange conforms to ASME B16.1 standard.
Available in sizes 2 1/2" to 8".
$333.25
$476.07
Save 30%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
Jomar F-351 Cast Iron Gate Valve with Non-Rising Stem, Solid Wedge, Bolted Bonnet, Class 125 features:
- Solid Wedge with Rising Stem
- Handwheel Operated
- Bonnet and Disc
- Lead Free Bronze Seat Ring
- Pressure Rating: Class 125
- Conforms to MSS SP-70
- Flange: ASME B16.1
- Face-to-Face: ANSI/ASME B16.10
- Lead Free Compliant
Pressure/Temperature Rating
- Class 125
- Suitable for 125 PSI WSP
- 14°F to 392°F (-10° to 200° C)
Certifications/Approvals
- Conforms to MSS SP-70
- Flange: ASME B16.1
- Face-to-Face: ANSI/ASME B16.10
- Lead Free Compliant
Summary Specifications (Please see attachment for full specs.)
Size 2 1/2" 3" 4" 6" 8" Model 103-525 103-503 103-504 103-506 103-508 Bolts 4 4 8 8 8 Weight (lbs.) 20 25 45 83 113 View Detailed Valve Specifications
Jomar F-351 Specs. Jomar F-351- F-351
Data sheet
- Valve Type
- Gate Valve
- Valve Size
- 2.5 (2 1/2") 3" 4" 6" 8"
- Valve Temperature Range
- 353°F (178°C)
- Valve Body Material
- Cast Iron
- Valve Body Style
- Full Port
- Valve Connection
- Flange ANSI B16.10
- Valve PSI
- 125
- Valve Configuration
- 2-Way
- Valve Operation
- Handwheel Operated
No customer reviews for the moment.
The Jomar F-351 Cast Iron Hand wheel Operated Gate Valve features a Solid Wedge with Non-Rising Stem, Lead Free Bronze Seat Ring with a pressure rating class 125, 125 PSI, Lead Free Bronze Seat Ring, Flange conforms to ASME B16.1 standard.
Available in sizes 2 1/2" to 8".
