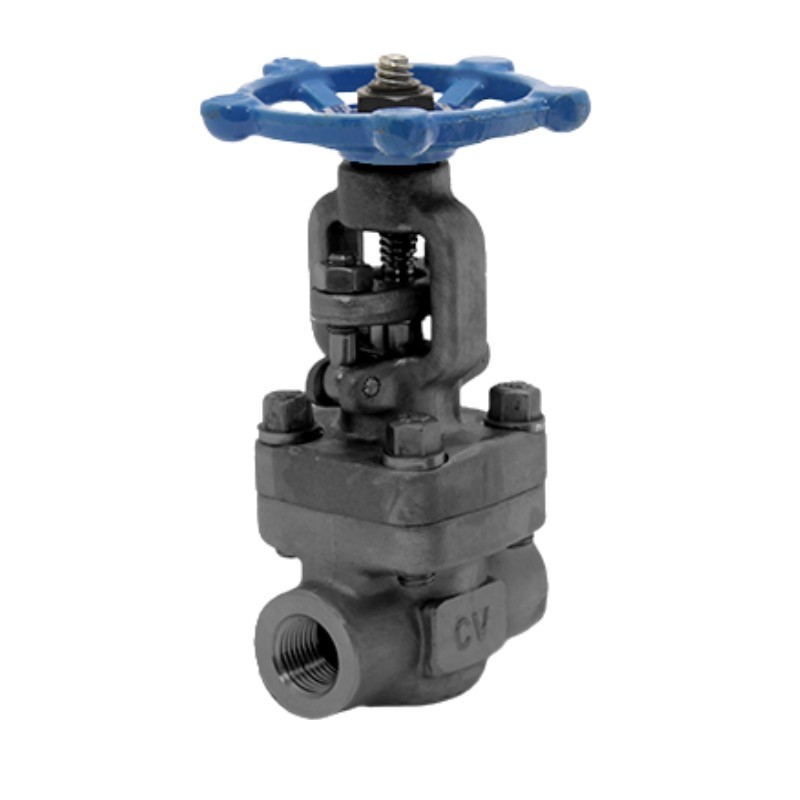

Chicago Valves Series 284 Forged Steel Class 800 Gate Valve SW (1/4" - 2")
284SW
The Chicago Valves Series 284 is a forged steel A105 Class 800 multi-turn gate valve SW ends, engineered for high-pressure isolation service in steam, oil, gas, and industrial process systems.
Designed with an OS&Y rising stem configuration, the valve provides positive visual indication of valve position while allowing external stem thread isolation from process media. Forged body construction delivers superior mechanical strength, pressure containment, and thermal reliability compared to cast alternatives, making the Series 28 well suited for severe service and cyclic operating conditions.
The Series 28 valve is also available with FNPT end connections. Manufactured in accordance with API 602, ASME B16.34, and API 598 standards for critical industrial applications.
Rated to approximately 1975 PSI at 100°F (38°C) and temperatures up to 850°F. Also available in 316L Stainless Steel.
Available in sizes from 1/4" to 2".
$48.84
$77.53
Save 37%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Chicago Valves Series 284 forged steel Class 800 multi-turn gate valve, Outside Screw & Yoke SW specifications:
General Valve Specification
- Body: Forged Steel A105 (Also available in 316L Stainless Steel)
- Pressure Class: ASME Class 800
- End Connection: SW (Socket Weld) also available in FNPT
- Design: OS&Y (Outside Screw & Yoke), rising stem
- Operation: Manual multi-turn handwheel
- Flow Function: Flow Function: Bi-directional shutoff/isolation service
- Port Style: Conventional/full bore gate design
- Stem Type:OS&Y rising stem, 316L stainless steel stem
- Wedge Type: Solid wedge disc
- Service Type: Bidirectional shutoff
- Seat Design: Renewable seat rings, Metal-to-metal seating surfaces, Backseat design for stem sealing during operation
- Bonnet Design: Bolted bonnet forged steel
- Maximum Pressure: A105 Forged Steel: approx. 1975 PSI at 100°F
- Compliance: NACE MR0175 available/applicable for sour service configurations
- Country of Origin: Cambodia
Design Standards
- API 602, API 598, ASME B16.34, ASME B16.11, NACE MR0175
Options
- Available in FNPT, On demand also Socket Weld Threaded
- Available in 316L Stainless Steel (Series 286)
Summary Specifications of Chicago Valves Series 284 Gate valve
Size 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" CV 1.8 3.1 5.3 8.2 16 31.1 45.3 71.8 Weight (lbs) 4.63 4.63 4.41 4.85 7.72 12.12 14.11 20.5 - 284SW
Data sheet
- Valve Type
- Gate Valve
- Valve Size
- .5 (1/2") .25 (1/4") .75 ( 3/4") .375 (3/8") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
- Valve Temperature Range
- -20° to 850°F (°C -29 to 454)
- Valve Body Material
- Forged Steel A105
- Valve Body Style
- Bore gate design
- Valve Connection
- SW Ends
- Valve PSI
- 1975 Max
- Valve Configuration
- 2-Way
- Valve Seat
- Metal on Metal
- Warranty
- 1 year
- Valve Standards
- API 598 API 603 ASME B16.5 ASME B16.34 B16.11 NACE MR0175
The Chicago Valves Series 284 is a forged steel A105 Class 800 multi-turn gate valve SW ends, engineered for high-pressure isolation service in steam, oil, gas, and industrial process systems.
Designed with an OS&Y rising stem configuration, the valve provides positive visual indication of valve position while allowing external stem thread isolation from process media. Forged body construction delivers superior mechanical strength, pressure containment, and thermal reliability compared to cast alternatives, making the Series 28 well suited for severe service and cyclic operating conditions.
The Series 28 valve is also available with FNPT end connections. Manufactured in accordance with API 602, ASME B16.34, and API 598 standards for critical industrial applications.
Rated to approximately 1975 PSI at 100°F (38°C) and temperatures up to 850°F. Also available in 316L Stainless Steel.
Available in sizes from 1/4" to 2".
