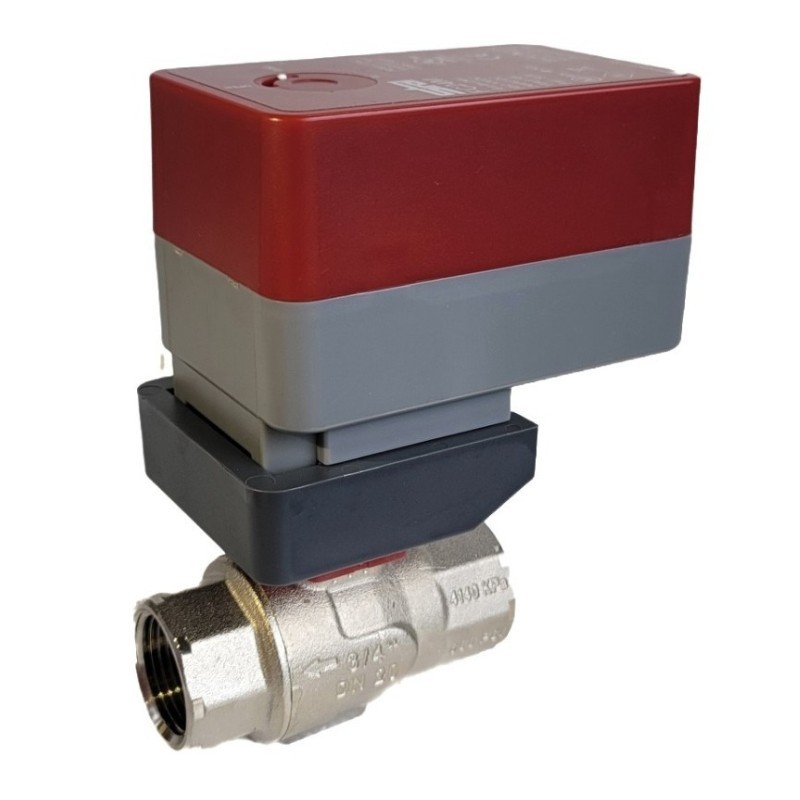

Siral CVW 0.5 (1/2") Characterized Ball Valve FNPT 2-Way NP Brass (SS Ball/Stem) Cv 0.3-16
B203-B225
The Siral CVW 1/2" FNPT 2-Way Nickel-Plated Brass Characterized Control Ball Valve with Actuator (SS Ball & Stem), Cv 0.3-16 is a compact, high-performance control assembly engineered for highly precise proportional flow regulation in commercial HVAC water and glycol systems (such as fan coils, air handlers, and VAV reheat coils). The CVW sets new standards in control accuracy, leakage efficiency and life durability in Hydronic Applications.
Valve features threaded FNPT ends, blowout-proof stem, floating seat, self-cleaning SS ball, EPDM Perox O-ring stem seal, and PTFE seat providing bubble-tight (zero leakage) shutoff. Rated for 600 PSI body pressure, 200 PSI close-off, and operating temperatures from 0°F to 250°F (-18°C to 120°C).
Save installation time: Pre-assembled, calibrated and tested. Please allow up to 2 business days for assembly and testing. Actuator options:
- Non Spring Return, Non Fail-Safe: NC24F: On/off/floating NC24M: Modulating 2-10 VDC
- Non Spring Return, Fail-Safe: FC24: On/Off; FC24M: Modulating 2-10VDC FC24-S: On/Off, Auxiliary Switch.
$224.05
$373.42
Save 40%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Siral CVW 1/2" FNPT 2-Way Nickel-Plated Brass Characterized Control Ball Valve with Actuator (Stainless Steel Ball & Stem), Cv 0.3-16 is a compact automated 2-piece valve package designed for highly precise modulating and proportional fluid regulation with bubble-tight (zero leakage) shutoff. Conforming to ASME B16.34, the integrated direct-mounting pad allows the electric actuator to mount directly to the valve body, reducing hysteresis, preventing alignment errors, and saving valuable installation space in commercial mechanical rooms.
To ensure long-term durability in the field, this valve is engineered with a robust nickel-plated brass body designed to reduce stress concentration. Its advanced floating seat design maintains stable operating torque throughout the life of the valve, protecting the actuator from premature wear, while the self-cleaning SS ball actively eliminates blockages and leakage caused by damaged surfaces. Additionally, an integrated thermal barrier flange minimizes heat transfer to further extend the service life of the actuator.
Also available in 3/4", 1", 1-1/4", 1-1/2", and 2" sizes.
General Valve Specification
- Valve Type: Characterized Ball Valve (2-Way)
- Port Design: Characterized
- Body Material: Nickel-Plated Brass
- Valve Trim: Stainless Steel Ball & Stem
- Body Pressure Rating: 600 PSI (1/2"-1") / 400 PSI (1-1/4"-2")
- Close-Off Pressure Rating: 200 PSI (Maximum Differential: 50 PSI)
- Temperature Range: 0°F to 250°F / -18°C to 120°C
- Seat Material: PTFE
- Characterizing Disc: Brass Characterized
- Ball Material: Stainless Steel (Self-Cleaning)
- Stem Material: Stainless Steel (Blowout-Proof)
- Stem Seal Material: EPDM Perox (O-Ring)
- Flow Characteristic: Equal Percentage (A to AB)
- Allowed Media: Water, Glycol (up to 60%)
- Operation: Electric Actuator (24VAC, Non-Spring Return, IP42)
- Body Style: 2-Way, Direct Mount
- Flow Function: Modulating / Flow Regulation
- End Connections: Threaded FNPT
- Country of Origin: Italy
- Assembled in the USA
- Mounting Pad Standard: ISO 5211 (F04)
Siral Automated Package 5-Year Warranty
This automated package includes an exceptional 5-year warranty. The 5 year warranty period is unconditional for the first two (2) years. After the first 2 years, the warranty shall be conditional and the warranty coverage shall not apply to damage to Products caused by factors that constitute non-conformance beyond the control of Seller.
Actuator Models & Specifications Summary
Models NC24F NC24M FC24 FC24-S FC24M Fail Safe No Yes Control Signal On/Off / Floating (3-Point) Modulating 2-10VDC On/Off On/Off (Auxiliary Switch) Modulating with Feedback Voltage AC 24 VAC 50/60 Hz ± 20% Voltage DC 24 VDC ± 10% Power Consumption 0.5W 1W 1.5W 0.5W Transformer 1 VA (Class 2) 2 VA (Class 2) 1 VA (Class 2) Connection (3 ft- 1m) Plenum rated cable 22 AWG Plenum rated cable 18 AWG Run Time (Motor) 75 seconds 80 seconds 75 seconds Manual Override Push down handle N/A - B203-B225
Data sheet
- Valve Type
- Characterized CVW
- Valve Size
- .5
- Valve Temperature Range
- 0°F to 250°F (°C -18 to 120°)
- Valve Body Material
- Nickel-plated Brass
- Valve Body Style
- 2-Way Direct Mount
- Actuation Type
- Electric Non-Spring Return
- Valve Connection
- FNPT
- Actuator Action
- Fail-Safe Modulating with Feedback, Fail-Safe On/Off (Aux Switch), Fail Safe On/Off, Non-Fail safe Modulating 2-10VDC, Non-fail-safe on/off floating
- Valve PSI
- 600
- Valve Body Type
- 2 Pieces
- Valve Configuration
- 2-Way
- Valve Trim
- SS Ball/Stem
- Valve Seat
- PTFE
- Warranty
- 5 years
- Cv
- 0.3, 0.8, 0.46, 1.2, 1.9, 3, 4.7, 10, 16
- Port Design
- Characterized
