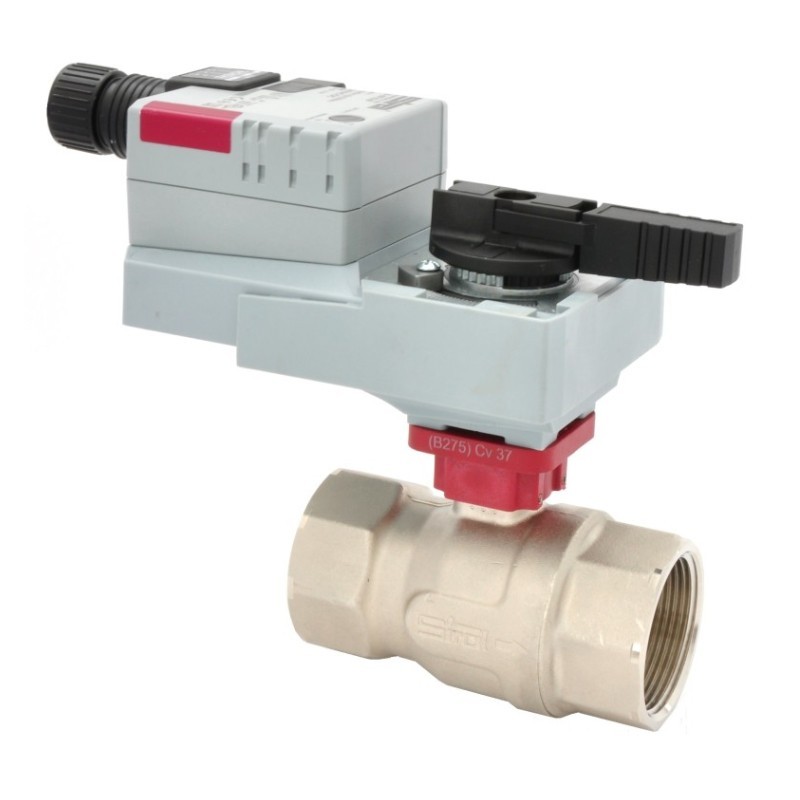

Siral CVW 1 1/4" FNPT 2-Way Nickel Plated Brass Characterized Ball Valve for Water with Actuator, Cv 10-120
B261-B267
The Siral CVW 1 1/4" FNPT 2-Way Stainless Steel Characterized Control Ball Valve with Actuator (SS Ball & Stem), Cv 10-120 is a compact, high-performance control assembly engineered for highly precise proportional flow regulation in commercial HVAC water and glycol systems (such as fan coils, air handlers, and VAV reheat coils).
Valve features threaded FNPT ends, blowout-proof stem, floating seat, self-cleaning SS ball, EPDM O-ring stem seal, and PTFE seat providing bubble-tight (zero leakage) shutoff. Rated for 600 PSI body pressure, 200 PSI close-off, and operating temperatures from 0°F to 250°F (-18°C to 120°C).
Save installation time: Pre-assembled, calibrated and tested. Actuator options: NDV24F: non-fail-safe on/off/floating; NDV24M: non-fail-safe modulating; FDV24: Spring Return, fail-safe, On/Off; FDV24F: fail-safe, On/Off, floating; or FDV24M: fail-safe modulating with feedback. Please allow up to 2 business days for assembly and testing.
$337.95
$592.89
Save 43%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Siral CVW 1 1/4" FNPT 2-Way Stainless Steel Characterized Control Ball Valve with Actuator (Stainless Steel Ball & Stem), Cv 10-120 is a compact automated 2-piece valve package designed for highly precise modulating and proportional fluid regulation with bubble-tight (zero leakage) shutoff. Conforming to ASME B16.34, the integrated direct-mounting pad allows the electric actuator to mount directly to the valve body, reducing hysteresis, preventing alignment errors, and saving valuable installation space in commercial mechanical rooms.
To ensure long-term durability in the field, this valve is engineered with a robust nickel-plated brass body designed to reduce stress concentration. Its advanced floating seat design maintains stable operating torque throughout the life of the valve, protecting the actuator from premature wear, while the self-cleaning SS ball actively eliminates blockages and leakage caused by damaged surfaces. Additionally, an integrated thermal barrier flange minimizes heat transfer to further extend the service life of the actuator.
Also available in 1/2", 3/4", 1", 1 1/2", and 2" sizes.
General Valve Specification
- Valve Type: Characterized Ball Valve (2-Way)
- Port Design: Characterized
- Body Material: Nickel-Plated Brass
- Valve Trim: Stainless Steel Ball & Stem
- Body Pressure Rating: 600 PSI (1/2"-1") / 400 PSI (1-1/4"-2")
- Close-Off Pressure Rating: 200 PSI (Maximum Differential: 50 PSI)
- Temperature Range: 0°F to 250°F / -18°C to 120°C
- Seat Material: PTFE
- Characterizing Disc: Brass Characterized
- Ball Material: Stainless Steel (Self-Cleaning)
- Stem Material: Stainless Steel (Blowout-Proof)
- O-Ring Material: EPDM
- Flow Characteristic: Equal Percentage (A to AB)
- Allowed Media: Water, Glycol (up to 60%)
- Operation: Electric Actuator (24VAC, Non-Fail Safe Non Spring Return, Fail Safe Spring Return, IP42)
- Body Style: 2-Piece, Direct Mount
- Flow Function: Modulating / Flow Regulation
- End Connections: Threaded FNPT
- Country of Origin: Italy
- Assembled in the USA
- Mounting Pad Standard: ISO 5211 (F04)
Siral Automated Package 5-Year Warranty
This automated package includes an exceptional 5-year warranty. The 5 year warranty period is unconditional for the first two (2) years. After the first 2 years, the warranty shall be conditional and the warranty coverage shall not apply to damage to Products caused by factors that constitute non-conformance beyond the control of Seller.
Actuator Models & Specifications Summary
Models NDV24F NDV24M FDV24 FDV24F FDV24M Fail Safe No Yes Spring Return No Yes Control Signal On/Off / Floating (3-Point) 2-10 VDC, 4-20mA On/Off On/Off/Floating-3point 2-10 VDC,4-20mA Voltage AC 24 VAC 50/60 Hz ± 20% Voltage DC 24 VDC ± 10% N/A 24 VDC ± 10% Consumption Running 1.5W 2.5W Transformer 2 VA (Class 2) 5 VA (Class 2) 4 VA (Class 2) Connection (3 ft- 1m) Terminals, Plenum rated cable 18 GA: 3 Ft (1 m) Terminals, Plenum rated cable 18 GA 10 Ft.(3 m) Run Time (Motor) 95 seconds 40-75 seconds Manual Override Push-button - B261-B267
Data sheet
- Valve Type
- Characterized CVW
- Valve Size
- 1.25
- Valve Temperature Range
- 0°F to 250°F (°C -18 to 120°)
- Valve Body Material
- Nickel-plated Brass
- Valve Body Style
- 2-Way, Direct Mount
- Actuation Type
- Electric Non-Spring Return, Electric Spring Return
- Valve Connection
- FNPT
- Actuator Action
- Fail-Safe Modulating with Feedback, Fail-safe on/off floating, Fail Safe On/Off, Non-Fail safe Modulating 2-10VDC, Non-fail-safe on/off floating
- Valve PSI
- 400
- Valve Body Type
- 2 Pieces
- Valve Configuration
- 2-Way
- Valve Seat
- PTFE
- Warranty
- 5 years
- Cv
- 10, 19, 25, 37, 120
- Port Design
- Characterized
The Siral CVW 1 1/4" FNPT 2-Way Stainless Steel Characterized Control Ball Valve with Actuator (SS Ball & Stem), Cv 10-120 is a compact, high-performance control assembly engineered for highly precise proportional flow regulation in commercial HVAC water and glycol systems (such as fan coils, air handlers, and VAV reheat coils).
Valve features threaded FNPT ends, blowout-proof stem, floating seat, self-cleaning SS ball, EPDM O-ring stem seal, and PTFE seat providing bubble-tight (zero leakage) shutoff. Rated for 600 PSI body pressure, 200 PSI close-off, and operating temperatures from 0°F to 250°F (-18°C to 120°C).
Save installation time: Pre-assembled, calibrated and tested. Actuator options: NDV24F: non-fail-safe on/off/floating; NDV24M: non-fail-safe modulating; FDV24: Spring Return, fail-safe, On/Off; FDV24F: fail-safe, On/Off, floating; or FDV24M: fail-safe modulating with feedback. Please allow up to 2 business days for assembly and testing.
