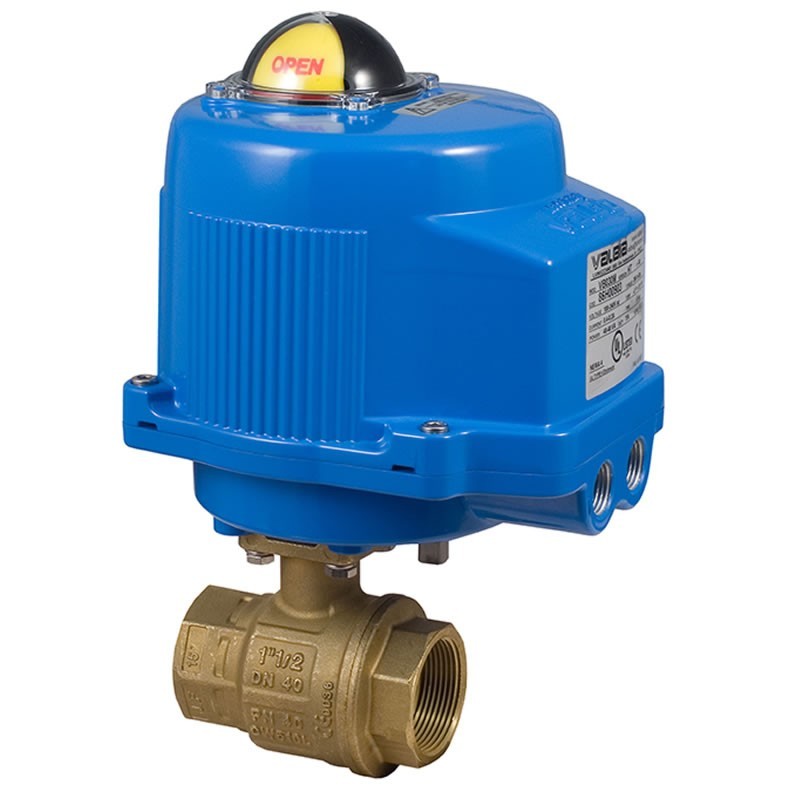

Bonomi M8E064 with 250N Brass ball valve 2-Way FNPT 600WOG Direct Mount full port and Valbia Electric Actuator
M8E064
The Bonomi M8E064 package includes the Rubinetterie Bresciana 250N Brass Valve Full Port, Direct mount, 2-Way, Ball Valve FNPT Threaded and the Valbia 86 Series Electric Actuator 0°-90° rotation w/Aluminum enclosure. The valve pressure rating is 600 WOG-150 WSP with a blowout proof stem, Double O-ring backing for low Temperature.
The package also includes the Valbia 86 Series Electric Actuator 0°-90° rotation with Metal enclosure. The options available are a Fail Safe battery backup, Modulating positioner 0-10VDC or 4-20mA or both. Votage options are 24V AC/DC, 12V AC/DC or 100-240V AC.
Available in sizes from 1/4" to 4".
$422.73
$549.00
Save 23%Typically ships within 3-5 bus. days (can be expedited)
Security - Rest assured. Our site is encrypted and we do not store any payment information
Free Shipping - Free delivery on most products unless otherwise stated
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Bonomi M8E064 package, includes both the Valve and the Valbia Electric Actuator, details of each are listed below:
Valve
The Rubinetterie Bresciana series 250N Direct Mount 2-Way Lead Free ball valve, FNPT Threaded with ISO 5211 pad for actuator, full port.
250N Features
- Pressure rating 600 WOG-150 WSP
- Temperature range -4°F to 366°F
- ANSI B1.20.1 connections
- Blow-out proof stem, SLT. coated LF brass ball and and double 0-ring stem packing.
- PTFE seats with O-ring backing for low operating torque
- 100% electronically tested in the open and closed position at 80 psi.
- Not to be used for drinking water.
- Valve to be used in fully open or fully closed position.
- WITH BRASS BALL AND STEM - size 1/4" to 4"
Drawings and Detailed Valve 250N Specifications
Please refer to the table below for specification or the attached PDF in the Attachments Tab. Click on the table below to expand
Actuator
Valbia Electric Actuator Features
- Valbia electric actuators are suitable for the automation of a great variety of ball and butterfly valves
- The motor adjusts its speed at the load variations in order to consistently maintain the specified cycle time
- The torque limiter and the heaters are both included in the standard version and are always automatically operating when the actuator is powered, to ensure a continuous protection against condensation and over-torque
- The gear train is made of two steel and techno-polymer gear wheels, inserted in a strong die-cast aluminum structure and sustained by hardened steel pinions mounted on self-lubricating bushes, to provide a strong mechanical construction
- The Valbia electric actuators are all designed with an ISO 5211 standard bottom connection pattern, in order to allow the direct mount of all ISO 5211 designed valves
- ISO Pattern F03 and F05.
- The 86 series, with a powder coated aluminum enclosure
- Actuator Approvals: CE, UL & CSA
- Auxiliary Limit Switches: n°2 STD (type SPOT)
- Temperature range of 23°F to 131°F
- Rotation 90°
Valve Size with Corresponding Actuator Reference
Valve Size 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4" Valbia 86 Models VB015M VB015M VB015M VB015M VB015M VB015M VB015M VB015M VB060M VB060M VB110M Max Torque 150 150 150 150 150 150 150 150 530 530 975 Package Weight 8.16 8.14 8.03 8.23 8.94 9.58 11.00 11.25 19.47 23.28 39.86 Actuator - Valbia 86 Series Technical Data
Series 86 Actuators
Valbia Actuators Series 86- M8E064
Data sheet
- Valve Type
- Ball Valve
- Valve Size
- .5 (1/2") .25 (1/4") .75 ( 3/4") .375 (3/8") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2" 2.5 (2 1/2") 3" 4"
- Valve Temperature Range
- -4° to 366° F (°C -20 to 186)
- Valve Body Material
- Brass - Lead Free
- Actuation Type
- Electric (Fail in Place)
- Actuator Housing
- Aluminum
- Valve Pressure Rating
- 600 WOG
- Valve Connection
- FNPT
- Acuatator Rotation
- 0°-90°
- Actuator Action
- On/Off Fail in Place
- Valve Body Type
- 2 Pieces
