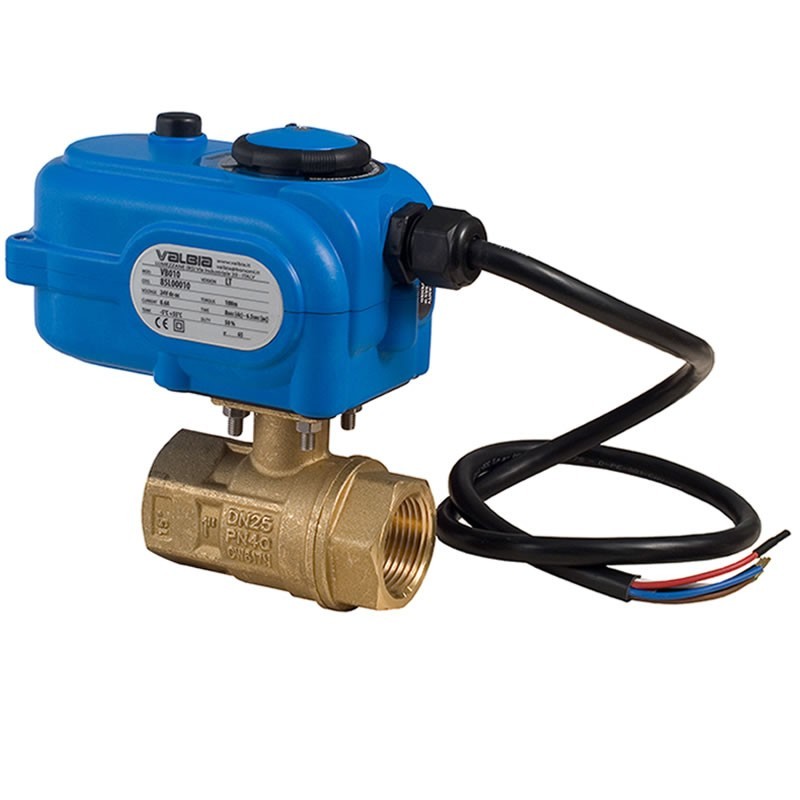

Bonomi 8E864LF Lead Free Brass Ball Valve 250N LF 2 Way Full port Direct Mount FNPT with Valbia Plastic case Electric Actuator
8E868
The Bonomi 8E864LF package includes the Rubinetterie Bresciana 250N LF Lead Free Brass Ball Valve, Full Port, Direct mount, 2-Way, FNPT Threaded. The valve pressure rating is 600 WOG-150 WSP, blow-out proof stem, SLT coated (Silicon Lubricating Treatment) and double 0-ring stem packing.
The package also includes the Valbia 85 Series VB010 Electric Actuator 0°-90° rotation with Plastic enclosure. Available with voltage options of 24V AC/DC or 110V AC.
Available in sizes from 1/4" to 1 1/4".
$269.37
$369.00
Save 27%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Bonomi 8E864LF package, includes both the Valve and Actuator, details of each are listed below:
Valve
The Rubinetterie Bresciana 250N LF Direct Mount 2-Way Brass Ball valve, FNPT Threaded, Full Port with ISO 5211 pad for actuator.
253N Features
- Pressure rating 600 WOG-150 WSP
- Temperature range -4°F to 366°F
- ANSI B1.20.1 connections
- Blow-out proof stem, SLT. coated Lead Free brass ball and and double 0-ring stem packing.
- PTFE seats with O-ring backing for low operating torque
- 100% electronically tested in the open and closed position at 80 psi.
- Valve to be used in fully open or fully closed position.
Drawings and Detailed Valve Specifications
Please refer to the table below for specification or the attached PDF in the Attachments Tab. Click on the table below to expand
Valbia VB010 Electric Actuator
Actuator Features
- Valbia electric actuators are suitable for the automation of a great variety of ball and butterfly valves
- The motor adjusts its speed at the load variations in order to consistently maintain the specified cycle time
- The torque limiter and the heaters are both included in the standard version and are always automatically operating when the actuator is powered, to ensure a continuous protection against condensation and over-torque
- The gear train is made of two steel and techno-polymer gear wheels, inserted in a strong die-cast aluminum structure and sustained by hardened steel pinions mounted on self-lubricating bushes, to provide a strong mechanical construction
- The Valbia electric actuators are all designed with an ISO 5211 standard bottom connection pattern, in order to allow the direct mount of all ISO 5211 designed valves
- ISO Pattern F03 and F05.
- The 85 series actuators feature a techno polymer enclosure
- Actuator Approvals: CE, UL & CSA
- Auxiliary Limit Switches: n°2 STD (type SPOT)
- Temperature range of 23°F to 131°F
- Rotation 90°
Valve Size with Corresponding Actuator
Valve Size 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" Valbia 85 Model VB010 VB010 VB010 VB010 VB010 VB010 Package Weight 2.11 2.08 2.15 2.39 2.86 3.49 Actuator - Valbia 85 Series Technical Data
Valbia VB010 Information
Valbia VB010
Valbia Actuators VB010- 8E868
Data sheet
- Valve Type
- Ball Valve
- Valve Size
- .5 (1/2") .25 (1/4") .75 ( 3/4") .125 (1/8") 1" 1.25 (1 1/4")
- Valve Temperature Range
- -4° to 366° F (°C -20 to 186)
- Valve Body Material
- Brass
- Actuation Type
- Electric (Fail in Place)
- Actuator Housing
- Technopolymer Enclosure
- Valve Connection
- FNPT
- Acuatator Rotation
- 0°-90°
- Valve PSI
- 600 WOG
- Valve Body Type
- 2 Pieces
- Valve Configuration
- 2-Way
- Valve Seat
- PTFE
