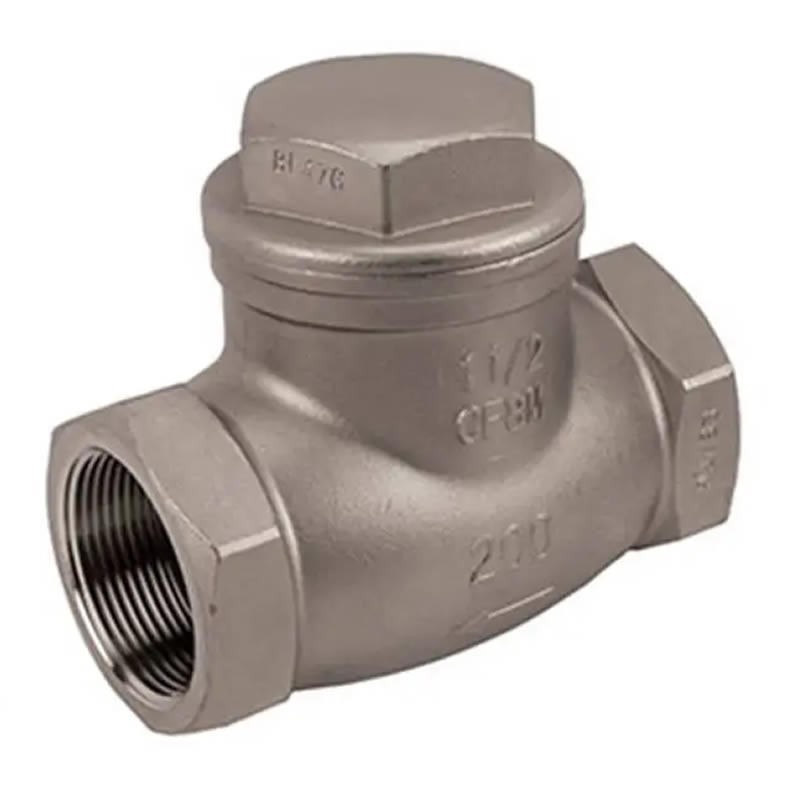

Jomar T-550 Horizontal Swing Check Valve Stainless Steel Threaded Connection 200 WOG One-Piece Body Design
T-550
      Jomar T-550 Horizontal Swing Check Valve Stainless Steel Threaded Connection 200 WOG One-Piece Body Design
      Jomar T-550 Horizontal Swing Check Valve Stainless Steel Threaded Connection 200 WOG One-Piece Body Design
      Jomar T-550 Horizontal Swing Check Valve Stainless Steel Threaded

      The Jomar T-550 Horizontal Swing Stainless Steel Check valve features a one-piece body design, Heavy Pattern body, PTFE O-Ring seal, Metal to Metal disk seal with Threaded Connection.

      Available in sizes 1/2" to 2".

      Jomar Valve
      $99.64
      $134.65
      Save 26%
      Quantity :

      FREE UPS Shipping Order before 11:00 on Tuesday and receive it between 7/24/26 and 7/29/26 with FREE UPS Shipping

      Delivery Options
      Carrier Description Estimated Delivery
      FREE UPS Shipping 4-6 days

      7/24/26 - 7/29/26

      UPS 3 bus. days Ships same or next day 3 bus-days Same day/next (Valve&Actuator + 1-2)

      7/24/26 - 7/27/26

      UPS 2 bus. days 2 bus-days Same day/next (Valve&Actuator + 1-2)

      7/23/26 - 7/24/26

      UPS Next Day - 1 business Day Ships same day/next (Valve&Actuator + 1-2)

      7/22/26 - 7/23/26

      Carrier: FREE UPS Shipping

      Description: 4-6 days

      Estimated delivery:
      7/24/26 - 7/29/26

      Carrier: UPS 3 bus. days Ships same or next day

      Description: 3 bus-days Same day/next (Valve&Actuator + 1-2)

      Estimated delivery:
      7/24/26 - 7/27/26

      Carrier: UPS 2 bus. days

      Description: 2 bus-days Same day/next (Valve&Actuator + 1-2)

      Estimated delivery:
      7/23/26 - 7/24/26

      Carrier: UPS Next Day - 1 business Day

      Description: Ships same day/next (Valve&Actuator + 1-2)

      Estimated delivery:
      7/22/26 - 7/23/26

      X
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • Jomar T-550 Stainless Steel Check Valve, Swing, Threaded Connection, 200 WOG features:

        • One-Piece Body Design
        • Heavy Pattern Body
        • PTFE O-Ring Seal
        • Metal-to-Metal Disc Seal
        • Manufactured in ISO-9001 facility
        Pressure/Temperature Rating
        • 200 WOG
        • -4°F to 392°F (-20° to 200° C)
        Certifications/Approvals
        • ANSI B1.20.1
        Summary Specifications (Please see attachment for full specs.)
        Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2"
        Model 105-803 105-804 105-805 105-806 105-807 105-808
        Weight (lbs.) 1 1 1 2 3 5

        View Detailed Valve Specifications
        Jomar T-550 Specs.
        Jomar T-550

      • Jomar Valve
        T-550

        Data sheet

        Valve Type
        Swing Check
        Valve Size
        .5, .75, 1", 1.5, 1.25, 2"
        Valve Temperature Range
        -4° to 392°F (°C -20 to 200)
        Valve Body Material
        Stainless Steel
        Valve Body Style
        Full Port
        Valve Connection
        FNPT
        Valve PSI
        200
        Valve Configuration
        2-Way
        Valve Operation
        Manual
        Valve Seat
        PTFE
