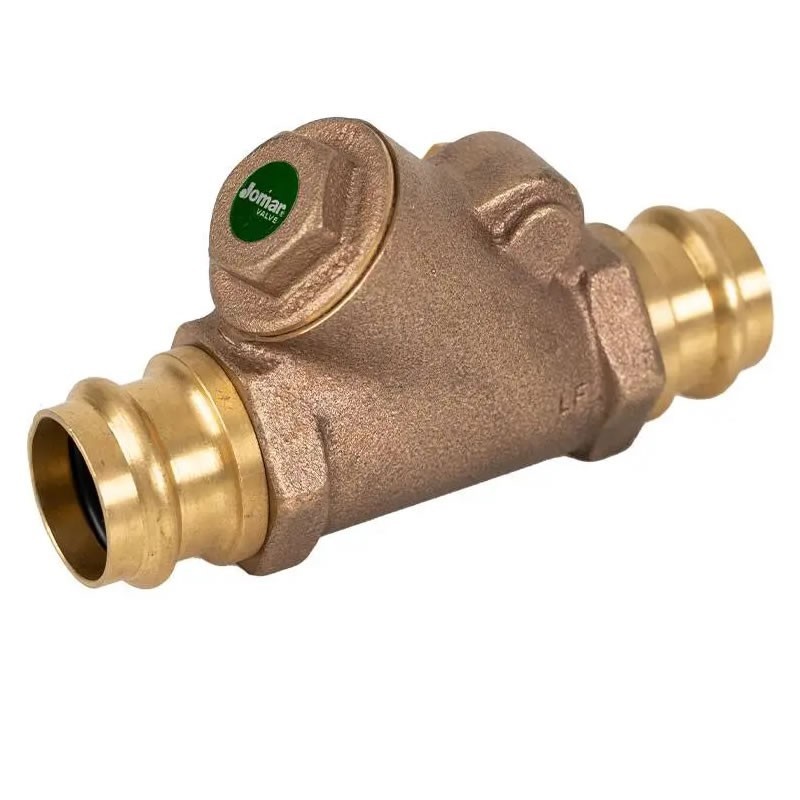

Jomar P-511G Lead Free Bronze Check Valve Swing Y-Pattern Press Connection 300 WOG Class 150
P-511G
The Jomar P-511G Lead Free Bronze Check Valve, Swing, Y-Pattern can be installed in Vertical or Horizontal Positions. The Y-pattern design places the disc and hinge at an angle, which allows for better flow characteristics and less pressure drop compared to a traditional in-line check valve. Features Dezincification Resistant Bronze preventing the valve's material from degrading in certain water conditions, thereby ensuring a long service life, 300 psi for WOG, 150 psi for steam, ANSI/ASME Class 150 200 psi.
Available in sizes 1/2" to 2".
$45.97
$61.29
Save 25%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
Jomar P-511G Lead Free Bronze Check Valve, Swing, Y-Pattern features:
- Dezincification Resistant Bronze
- Can be Installed in Vertical or Horizontal Positions
- Residential and Commercial Applications
- Wetted Surfaces Contain Less than .25% Lead Content
Pressure/Temperature Rating
- 200 PSI
- 300 WOG
- 150 WSP
- 32ºF - 200ºF (0°C to 93°C)
Certifications/Approvals
- Truesdail Certified
- NSF/ANSI/CAN 61 (2022)
- NSF/ANSI/CAN 372 (2022)
Additional Notes
- Install 5 pipe diameters minimum downstream from pump discharge or changes in direction to avoid flow turbulence. Flow straighteners may be required in extreme cases.
- Note: On pump discharge, the preferred check valves are: inline, spring assisted, center-guided, lift checks.
- May be installed in both horizontal and vertical lines with upward flow or in an intermediate position. They will operate satisfactory in a declining plane (no more than 15°).
Summary Specifications (Please see attachment for full specs.)
Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" Model 105-553G 105-554G 105-555G 105-556G 105-557G 105-558G Weight (lbs.) .75 1.18 1.6 2.37 3.6 5.3 View Detailed Valve Specifications
Jomar T-511G Specs. Jomar P-511G- P-511G
Data sheet
- Valve Type
- Check Valve
- Valve Size
- .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
- Valve Temperature Range
- 32 to 200°F (°C 0 to 93)
- Valve Body Material
- Brass - Lead Free
- Valve Body Style
- Full Port
- Valve Connection
- Press
- Valve PSI
- 200
- Valve Configuration
- 2-Way
- Valve Operation
- Manual
