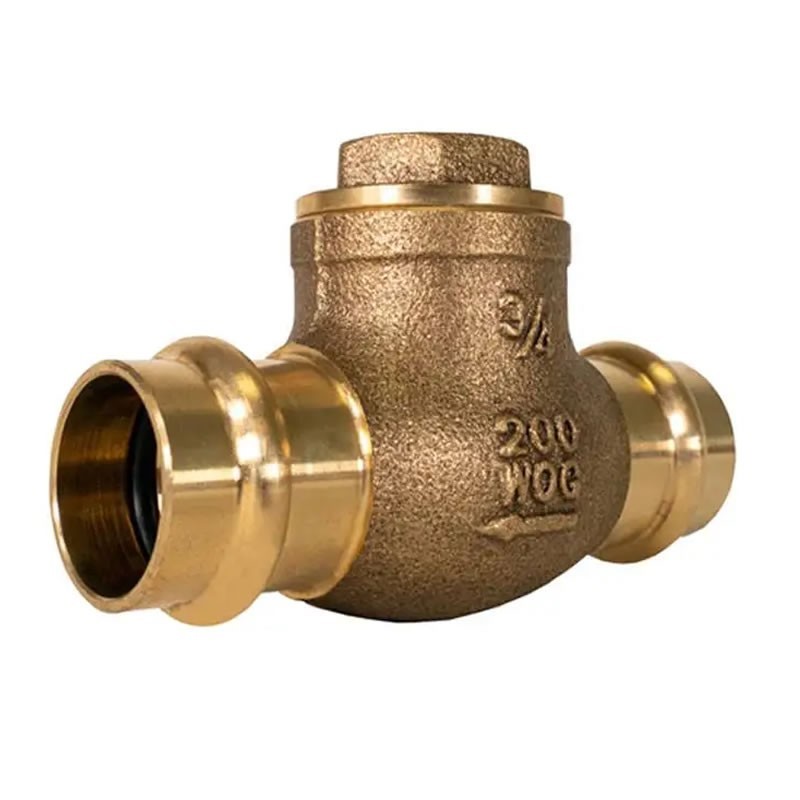

Jomar P-501G Lead Free Brass Check Valve, Horizontal Swing, Press Connection, 200 WOG, 125 Class
P-501G
The Jomar P-501G Lead Free Bronze horizontal swing Check Valve, one-piece body design, and press connection. It’s designed for lead-free brass applications (i.e., wetted surfaces contain <0.25% lead content) for potable/residential and commercial use. The Lead Free valve with heavy pattern cast brass construction, EPDM o-ring seal and metal-to-metal disc seal.
Dezincification Resistant Bronze preventing the valve's material from degrading in certain water conditions, thereby ensuring a long service life, 200 psi for WOG.
Available in sizes 1/2" to 2".
$58.38
$71.20
Save 18%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
Jomar P-501G Lead Free Bronze Check Valve, Horizontal Swing features:
- Bronce resistente a la deszincificación y libre de plomo
- Diseño de una sola pieza
- Aplicaciones residenciales y comerciales
- Construcción robusta en latón fundido con patrón
- Junta tórica de EPDM
- Sello de disco metal-metal
- Las superficies en contacto con el fluido contienen menos del 0,25 % de plomo
Pressure/Temperature Rating
- 200 WOG
- 32ºF - 200ºF (0°C to 93°C)
Certifications/Approvals
- Lead Free Compliant
- Conforms to IAPMO PS 117
Additional Notes
- Install 5 pipe diameters minimum downstream from pump discharge or changes in direction to avoid flow turbulence. Flow straighteners may be required in extreme cases.
- Note: On pump discharge, the preferred check valves are: inline, spring assisted, center-guided, lift checks.
- Jomar Check Valves may be installed in both horizontal and vertical lines with upward flow or in an intermediate position. They will operate satisfactory in a declining plane (no more than 15°).
- Warning: Do Not Use For Reciprocating Air Compressor Service.
Summary Specifications (Please see attachment for full specs.)
Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" Model 105-003G 105-004G 105-005G 105-006G 105-007G 105-008G Weight (lbs.) .62 .64 .85 1.12 3.6 5.3 View Detailed Valve Specifications
Jomar P-501G Specs. Jomar P-501G- P-501G
Data sheet
- Valve Type
- Horizontal Swing
- Valve Size
- .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
- Valve Temperature Range
- -4° to 392°F (°C -20 to 200)
- Valve Body Material
- Brass - Lead Free
- Valve Body Style
- Full Port
- Valve Connection
- Press
- Valve PSI
- 200
- Valve Configuration
- 2-Way
- Valve Operation
- Manual
- Valve Seat
- PTFE
The Jomar P-501G Lead Free Bronze horizontal swing Check Valve, one-piece body design, and press connection. It’s designed for lead-free brass applications (i.e., wetted surfaces contain <0.25% lead content) for potable/residential and commercial use. The Lead Free valve with heavy pattern cast brass construction, EPDM o-ring seal and metal-to-metal disc seal.
Dezincification Resistant Bronze preventing the valve's material from degrading in certain water conditions, thereby ensuring a long service life, 200 psi for WOG.
Available in sizes 1/2" to 2".
