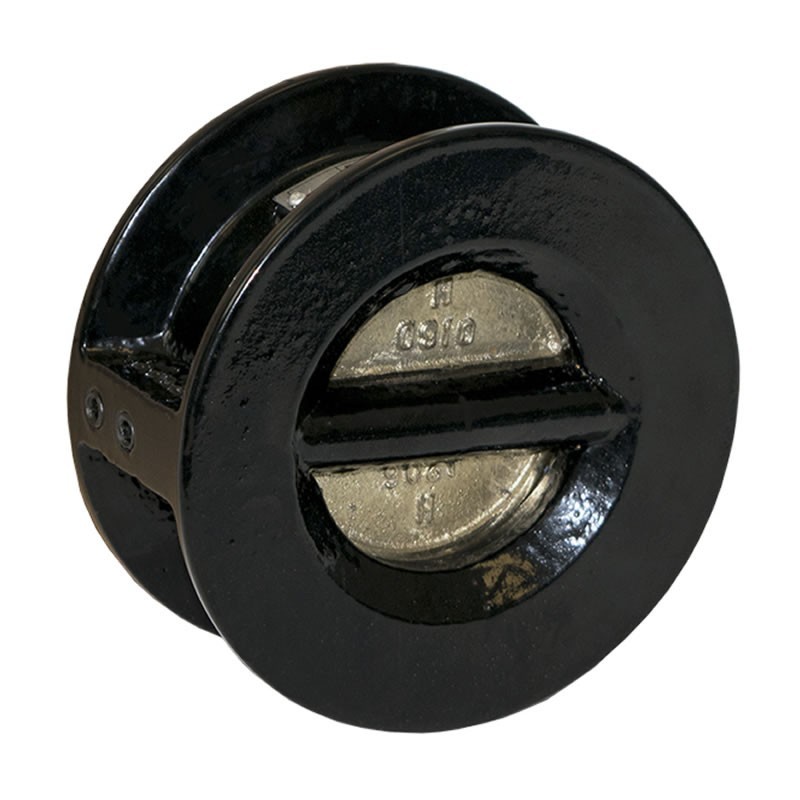

Jomar F-591 Cast Iron Check Valve Wafer Style Double door Class 125 Lead Free Compliant
F-591
The Jomar F-591 is a Lead Free Compliant Cast Iron Wafer Style Class 125 ANSI B16.1 approved Check Valve. Features Lead Free compliant disc of Aluminum Bronze - C95400 with a temperature range of 14°F - 176°F (-10° to 80°C).
Available in sizes from 2 1/2" to 12".
$78.98
$102.57
Save 23%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Jomar F-591 Lead Free compliant Cast Iron Wafer Check Valve features:
- Aluminum Bronze Disc
- Stainless Steel Stem
- Pressure Rating: Class 125
- ASME B16.1
- Sizes 2 1/2" to 12"
Approvals
- Lead Free Compliant
- ANSI B16.1
Pressure/Temperature Rating
- Class 125
- 14°F - 176°F (-10° to 80°C)
Install 5 pipe diameters minimum downstream from pump discharge or changes in direction to avoid flow turbulence. Flow straighteners may be required in extreme cases.
Note: On pump discharge, the preferred check valves are: inline, spring assisted, center-guided, lift checks.
Summary Specifications (Please see attachment for full specs.)
Size 2 1/2" 3" 4" 6" 8" 10" 12" F-591 Model 105-925 105-903 105-904 105-906 105-908 105-910 105-912 Weight 11 13 20 33 62 56 90 View Detailed Valve Specifications
Jomar F-591 Specifications Jomar F-591- F-591
Data sheet
- Valve Type
- Check Valve
- Valve Size
- 2.5 (2 1/2") 3" 4" 6" 8" 10" 12"
- Valve Body Material
- Cast Iron
- Valve Connection
- Flange ANSI B16.10
- Valve PSI
- 125
- Valve Operation
- Manual
No customer reviews for the moment.
The Jomar F-591 is a Lead Free Compliant Cast Iron Wafer Style Class 125 ANSI B16.1 approved Check Valve. Features Lead Free compliant disc of Aluminum Bronze - C95400 with a temperature range of 14°F - 176°F (-10° to 80°C).
Available in sizes from 2 1/2" to 12".
