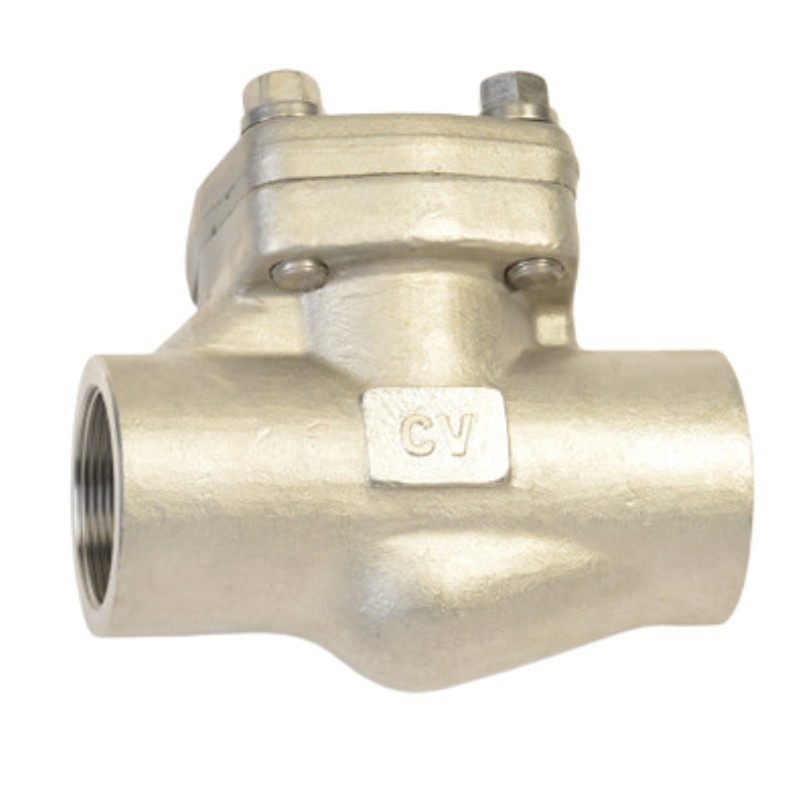

Chicago Valves Series P486 Class 800 2-Way Piston Check Valve Stainless Steel FNPT (1/4" - 2")
P486TE
The Chicago Valves Series P486 is a Class 800 piston check valve engineered to prevent reverse flow in high-pressure industrial systems. Featuring a bolted bonnet for dependable pressure containment, it provides automatic backflow prevention for steam, oil, gas, and chemical applications.
Manufactured to API 602 and tested to API 598 standards, it is rated for pressures up to 1,975 PSI at 100°F and temperatures up to 850°F.
FNPT threaded ends conform to ASME B1.20.1 for secure installation.
Available in 316L stainless steel or optional Forged Steel ASTM A105N, the P484 is designed for maximum durability in severe-service process lines.
Available in sizes from 1/4" to 2".
$172.88
$250.55
Save 31%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Chicago Valves Series P484 is a high-performance, Class 800 316L Stainless steel piston check valve designed for critical non-return flow control in high-pressure industrial environments. Engineered for durability and safety, the P484 features a robust bolted bonnet design, ensuring dependable pressure containment and long-term service life in steam, oil, gas, and process applications.
This series is a "standards-first" solution, manufactured in strict accordance with API 602 and tested to API 598 requirements. Its forged Stainless steel body provides superior structural integrity, enhanced corrosion resistance in aggressive chemical or coastal environments making it the preferred choice for high-temperature and high-pressure piping systems where cast valves may fail.
General Valve Specification
- Valve Type: Piston Check Valve (2-Way)
- Body Material: 316L stainless steel
- Operation: Automatic
- Bonnet Design: Bolted Bonnet
- Flow Function: Non-return / backflow prevention
- Service Type: Unidirectional flow service
- Pressure Rating: ASME Class 800 (1975 PSI @ 100°F / 38°C)
- Maximum Temperature: 850°F (454°C)
- End connections: FNPT per ASME B1.20.1
- Country of Origin: Cambodia.
Standards and Compliance
- API 602, API 598, ASME B1.20.1, NACE MR0175
Available Options & Configurations
The P484 series is highly versatile to meet specific project requirements. While the standard model is forged carbon steel with FNPT ends, the following configurations are also available:
- Alternative Connections: Socket Weld (SW) ends available for permanent, leak-proof joints.
- Material Option: Available in Forged Steel ASTM A105N
- Sizes: Full range available from 1/4" to 2"
Summary Specifications of Chicago Valves Series P486
Size 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" CV .6 .6 1.2 2.1 4.1 7.4 10.9 19.5 Weight (lbs) 3.09 3.09 3.09 3.31 5.95 8.59 11.68 17.20 - P486TE
Data sheet
- Valve Type
- Piston Check
- Valve Size
- .5 (1/2") .25 (1/4") .75 ( 3/4") .375 (3/8") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
- Valve Temperature Range
- -50° to 600°F (°C -46 to 316)
- Valve Body Material
- Stainless Steel 316L
- Valve Body Style
- Full Port
- Valve Connection
- FNPT
- Valve PSI
- 1975 Max
- Valve Configuration
- 2-Way
- Valve Seat
- Metal on Metal
- Warranty
- 1 year
- Valve Standards
- API 598 API 602 ASME B1.20.1 NACE MR0175
The Chicago Valves Series P486 is a Class 800 piston check valve engineered to prevent reverse flow in high-pressure industrial systems. Featuring a bolted bonnet for dependable pressure containment, it provides automatic backflow prevention for steam, oil, gas, and chemical applications.
Manufactured to API 602 and tested to API 598 standards, it is rated for pressures up to 1,975 PSI at 100°F and temperatures up to 850°F.
FNPT threaded ends conform to ASME B1.20.1 for secure installation.
Available in 316L stainless steel or optional Forged Steel ASTM A105N, the P484 is designed for maximum durability in severe-service process lines.
Available in sizes from 1/4" to 2".
