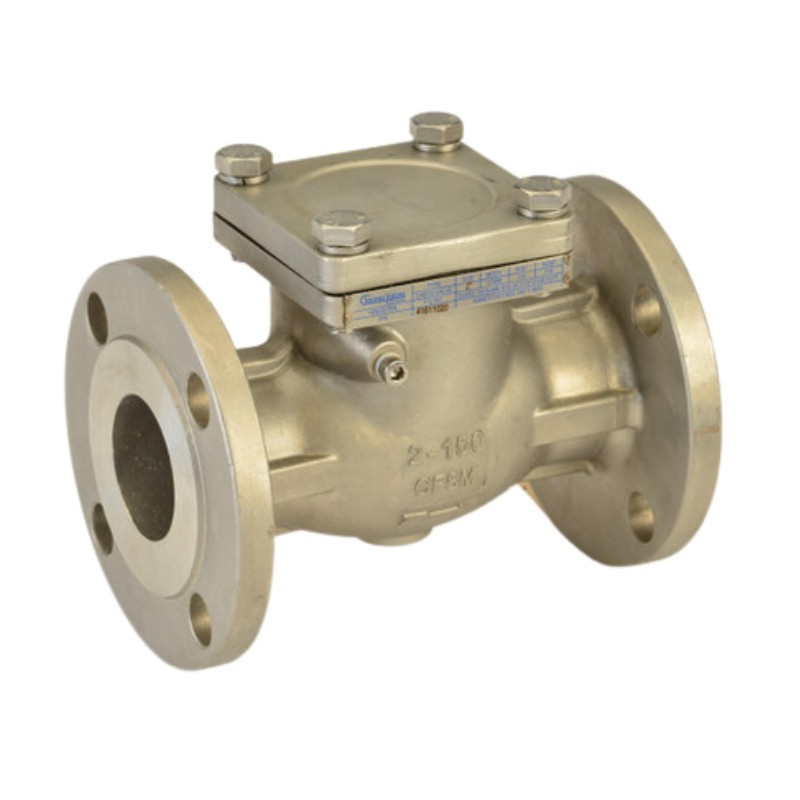

Chicago Valves Series 416 Class 150 Stainless Steel Swing Check Valve, API 598, 1/2" - 12"
4161
      Chicago Valves Series 416 Class 150 Stainless Steel Swing Check Valve, API 598, 1/2" - 12"
      Chicago Valves Series 416 Class 150 Stainless Steel Swing Check Valve, API 598, 1/2" - 12"
      Chicago Valves Series 416 Class 150 Stainless Steel Swing Check Valve, API 598, 1/2" - 12"
      Chicago Valves 416 | Class 150 SS Swing Check | 1/2"-12"
      Chicago Valves Series 416 Class 150 Stainless Steel Swing Check Valve, API 598, 1/2" - 12" Chicago Valves Series 416 Class 150 Stainless Steel Swing Check Valve, API 598, 1/2" - 12"

      The Chicago Valves Series 416 is a Class 150 stainless steel swing check valve engineered for superior corrosion resistance and reliable non-return flow control. Constructed with an ASTM A351 CF8M (316 SS) body, disc, and cover, this valve is optimized for chemical, pharmaceutical, and aggressive process environments.

      The Series 416 features a bolted cover design for secure maintenance access and an integral seat to eliminate leak paths behind the seat ring. Internal hardware, including bolts and spring washers, is constructed from 304 stainless steel. The Series 416 utilizes an RTFE gasket as standard, with Grafoil and 316 SS sheet options available for high-temperature service. Manufactured to ASME B16.34 and tested per API 598, this series is also available in a Class 300 configuration for higher-pressure requirements.

      Available in sizes from 1/2" to 12".

      Chicago Valves
      $387.64
      $625.22
      Save 38%
      Quantity :

      UPS Ground over 5 pounds Order before 10:30 on Friday and receive it between 6/10/26 and 6/15/26 with UPS Ground over 5 pounds

      Delivery Options
      Carrier Description Estimated Delivery
      UPS Ground over 5 pounds 5 to 6 days Transit

      6/10/26 - 6/15/26

      UPS 3 bus. days Ships same or next day 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      6/10/26 - 6/11/26

      UPS 2 bus. days Ships same day 2 bus-days, leaves WH same day if Order up to 10:30 EST

      6/9/26 - 6/10/26

      UPS Next Day - 1 business Day Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      6/8/26 - 6/9/26

      LTL Freight over 70 pounds 5-9 Bus. Days

      6/11/26 - 6/18/26

      Carrier: UPS Ground over 5 pounds

      Description: 5 to 6 days Transit

      Estimated delivery:
      6/10/26 - 6/15/26

      Carrier: UPS 3 bus. days Ships same or next day

      Description: 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      Estimated delivery:
      6/10/26 - 6/11/26

      Carrier: UPS 2 bus. days Ships same day

      Description: 2 bus-days, leaves WH same day if Order up to 10:30 EST

      Estimated delivery:
      6/9/26 - 6/10/26

      Carrier: UPS Next Day - 1 business Day

      Description: Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      Estimated delivery:
      6/8/26 - 6/9/26

      Carrier: LTL Freight over 70 pounds

      Description: 5-9 Bus. Days

      Estimated delivery:
      6/11/26 - 6/18/26

      X
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Chicago Valves Series 416 is a heavy-duty stainless steel solution designed for critical non-return flow regulation in high-purity and corrosive environments. By utilizing a high-integrity swing-type disc, this series provides a reliable barrier against reverse flow without the significant pressure drop associated with other check valve designs. The precision-cast construction is specifically optimized for 'severe service' pipelines where material longevity and simplified maintenance are essential to operational uptime

        The Series 416 is available from 1/2" to 12" and is also offered in Class 300 configurations.

        General Valve Specification
        • Valve Type: Swing Check Valve
        • Body Material:316 Stainless Steel ASTM A351 CF8M
        • Disc Material: 316 Stainless Steel ASTM A351 CF8M
        • Cover Material: 316 Stainless Steel ASTM A351 CF8M
        • Hardware (Bolts/Washers): 304 Stainless Steel
        • Gasket: RTFE (Optional: Grafoil + 316 Stainless Sheet)
        • Seat Ring Material: 316 Stainless Steel (Integral Seat)
        • Seating Type: Metal-to-Metal
        • Operation: Automatic
        • Cover Design: Bolted Cover
        • Flow Function: Non-return / backflow prevention
        • Service Type: Unidirectional flow service
        • Pressure Rating: ASME Class 150 (275 PSI @ 100°F / 38°C)
        • Maximum Temperature: 1,000°F (538°C)
        • End connections: Class 150 Flanged (RF)
        • Country of Origin: China
        Standards and Compliance
        • API 598, ASME B16.34, ASME B16.5, ASME B16.10
        Pressure Class Availability

        The Chicago valves 416 series Swing check Valve is available in the following ratings:

        • Class 150: Series 416
        • Class 300: Series 416
        Summary Specifications of Chicago Valves Series 416 Class 150
        Size Part Number CV (Flow) Weight (lbs)
        1/2" 05041611 26 7.54
        3/4" 07541611 50 7.91
        1" 10041611 80 10.52
        1 1/2" 15041611 300 18.19
        2" 20041611 360 25.07
        2 1/2" 25041611 630 34.77
        3" 30041611 1150 48.44
        4" 40041611 2150 76.57
        6" 60041611 4150 119.18
        8" 80041611 5250 197.69
        10" 100041611 6700 313.72
        12" 120041611 9925 466.06

      • Chicago Valves
        4161

        Data sheet

        Valve Type
        Swing Check
        Valve Size
        .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 2" 2.5 (2 1/2") 3" 4" 5" 6" 8" 10" 12"
        Valve Temperature Range
        1000 Max.
        Valve Body Material
        Cast Steel ASTM A216 WCB
        Valve Body Style
        RF (Raised Face)
        Valve Connection
        Class 150 Flanged
        Valve PSI
        275
        Valve Configuration
        2-Way
        Valve Seat
        Metal on Metal
        Warranty
        1 year
        Valve Standards
        API 598 ASME B16.5 ASME B16.10 ASME B16.34
