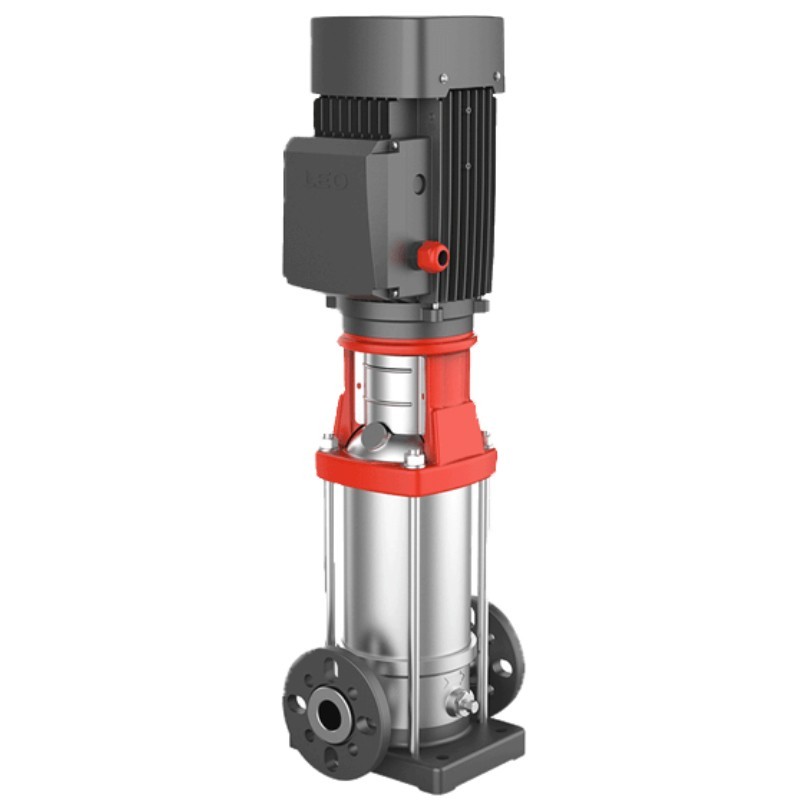

Leo LVS3-2 Stainless Steel Vertical Multistage Pump 460V/60hZ Three Phase 1/2 HP
LVS3-2
The Leo Vertical Multistage Pump LVS3-2 is designed for transferring liquids of low viscosity, non-inflammable and non-explosive, and do not contain solid particles or fibers. Can also be used for Water supply and drainage for high-rise buildings, filtration and transfer at waterworks, pressure boosting in main pipe. Washing and cleaning systems, boiler feeding, cooling water circulation, water treatment systems, auxiliary system, support equipment.
Other use cases include Ultra-filtration systems, reverse-osmosis systems, distillation systems, separators and swimming pools. Other uses are Agricultural irrigation: sprinkler irrigation, drip-feed irrigation, Food and beverage industry and Fire-Fighting system.
Not intended for liquids containing chemicals, corrosive fluids, or high-viscosity materials (e.g., oils, grease, or paint). Use with these fluids will void the pump warranty.
The Leo LVS3-2 features .37Kw 1/2 HP, 3 phase 2 motor poles motor 1x220V / 3x380V, altitude up to 1000 meters (3,280 feet). Corrosion resistant AISI 304 stainless steel pump body and shaft and motor protection Class IP55 (operating liquid temperature of up to 248°F (120°C).
$995.40
$1,580.00
Save 37%Weight: 44.00 lb.
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
Features
Operating Conditions
- Low viscosity, non-inflammable and non-explosive liquids not containing solid particles or fibers. The liquids must not chemically attack the pump materials. When pumping liquids with a density or viscosity is higher than that of water, a motor with a higher output power rating shall be used
- Liquid temperature: -4°F ~+ 248°F (– 20℃ ~+ 120℃)
- Flow ranges: 0.7- 120 m3/h
- Liquid pH value: 4-10
- Maximum ambient temperature: 104°F (+40°C)
- Maximum operating pressure: 33 bar (478 psi)
- Altitude up to 3280 feet (1000 meters)
Application
- Suitable for transferring liquids of low viscosity, non-inflammable and non-explosive, not containing solid particles or fibers.
- Water supply and drainage for high-rise buildings, filtration and transfer at waterworks, pressure boosting in main pipe.
- Washing and cleaning systems, boiler feeding, cooling water circulation, water treatment systems, auxiliary system, support equipment
- Ultra-filtration systems, reverse-osmosis systems, distillation systems, separators, swimming pools
- Agricultural irrigation: sprinkler irrigation, drip-feed irrigation
- Food and beverage industry
- Fire-fighting system
Pump
- Head 42.5 feet (13 m)
- Maximum use flow(m³/h)：5.4 Minimum usage flow(m³/h)：1.5
- Inlet and Outlet Diameter: DN25 (1")
- Shaft AISI316
- Cover, barrel, Guard plate, filling plug, diffuser and water injection plug AISI304
- Bottom plate: Aluminum
- Base: HT200
- Flange ZG35
- Maximum Operating pressure is 33 bar (approx. 478 PSI)
- Maximum liquid temperature: 248° F (120°C )
- Altitude: up to 3,280 feet (1,000 meters)
- Pipe Connections: Flange connection
- GPM/LPM 19.79 G /74.9 L at 58% Efficiency rate
- Pump maximum flow rate(m³/h) 3.6
- Pump efficiency(%): 58%
Motor
- High Efficiency IE 2 motor
- Totally enclosed and fan-cooled
- Enclosures class: IP55 (Totally Enclosed Fan-Cooled (TEFC) motor designed to operate in harsh, dirty, or wet environments by providing high-level protection against dust and water jets)
- Standard voltage: 60Hz 1x220V / 3x380V
- Minimum Inlet Pressure-NPSH
- Motor power .37Kw 1/2 HP (60 Hz)
- Speed RPM 3500
- Total weight approx. 35 lbs.
Warranty 2 years.

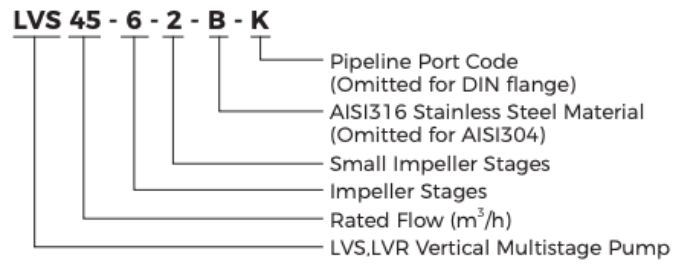

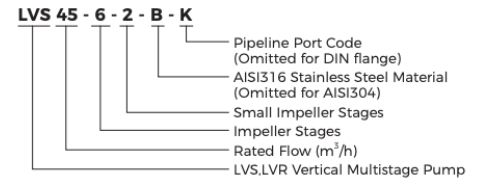

Nomenclature of Leo LVS Models
Please refer to the image below for codification. Click on the image to expand
Leo LVS Series
Leo LVS Specs Leo LVS-3-2- LVS3-2
Data sheet
- Pump Connection Type
- Flange
- Pump Duty Cycle
- Continuos
- Pump Frequency
- 60 Hz
- Pump Height
- 20.5
- Pump Horsepower
- .5 (1/2)
- Pump Housing
- Stainless Steel
- Pump Impeller Material
- AISI 304 Stainless Steel
- Max Suction Lift
- 62'
- Pump Phases
- 3
- Seal Material
- Graphite/Carbide/FKM/AISI304
- Ambient Temperature
- 104°F (40° C)
- Pump Thermal Overload Protection
- Yes
- Warranty
- 2 years
- Pump Voltage
- 460V
- Inlet Diameter
- DN25
- Outlet diameter
- DN25
The Leo Vertical Multistage Pump LVS3-2 is designed for transferring liquids of low viscosity, non-inflammable and non-explosive, and do not contain solid particles or fibers. Can also be used for Water supply and drainage for high-rise buildings, filtration and transfer at waterworks, pressure boosting in main pipe. Washing and cleaning systems, boiler feeding, cooling water circulation, water treatment systems, auxiliary system, support equipment.
Other use cases include Ultra-filtration systems, reverse-osmosis systems, distillation systems, separators and swimming pools. Other uses are Agricultural irrigation: sprinkler irrigation, drip-feed irrigation, Food and beverage industry and Fire-Fighting system.
Not intended for liquids containing chemicals, corrosive fluids, or high-viscosity materials (e.g., oils, grease, or paint). Use with these fluids will void the pump warranty.
The Leo LVS3-2 features .37Kw 1/2 HP, 3 phase 2 motor poles motor 1x220V / 3x380V, altitude up to 1000 meters (3,280 feet). Corrosion resistant AISI 304 stainless steel pump body and shaft and motor protection Class IP55 (operating liquid temperature of up to 248°F (120°C).
