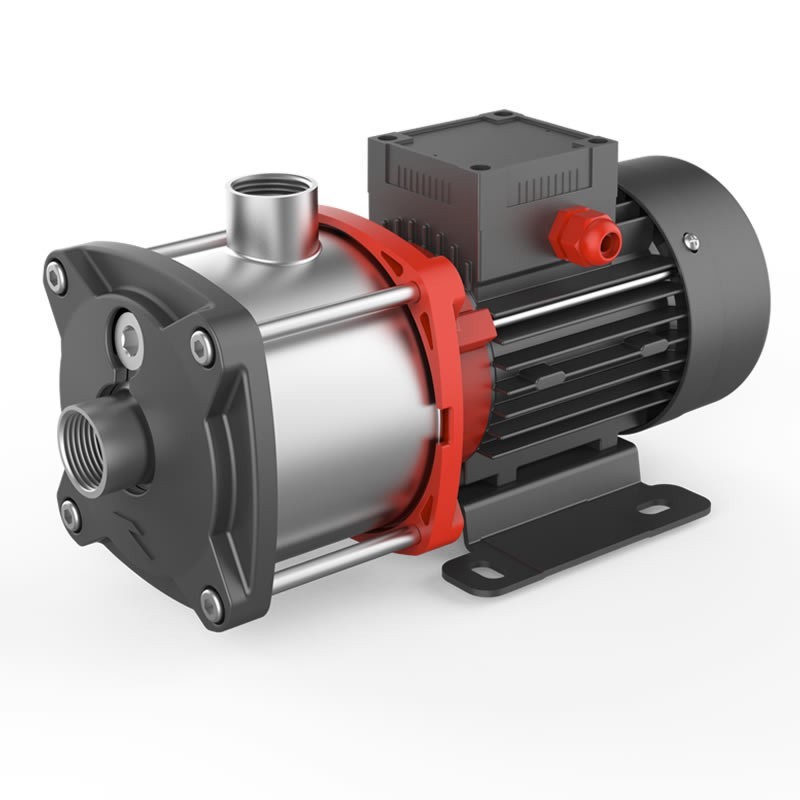

Leo EMH4-6 Stainless Steel Horizontal pump 1/2 HP 3 phases 220V/60 Hz 17.6 GPM 6 stage Impeller
EMH4-6
The Leo Horizontal Multistage Pump EMH4-6 is designed for these applications; household water supply, equipment support, pipeline pressurization, garden and greenhouse watering. It can also be used for fish farming, poultry raising, industrial and mining, water supply and drainage of enterprises and high-rise buildings, central A/C and centralized heating circulation systems.
Not intended for liquids containing chemicals, corrosive fluids, or high-viscosity materials (e.g., oils, grease, or paint). Use with these fluids will void the pump warranty.
The Leo EMH4-6 features .5 (1/2) HP, rated for 1.8 kW 3 phase 6 stage motor 220V, altitude up to 1000 meters (3,280 feet). Corrosion resistant AISI 304 stainless steel pump body and shaft and motor insulation Class F (operating temperature of 311°F (155°C).
Maximum liquid temperature up to 140 °F (60°C) consisting of clean, thin, non-corrosive, non-flammable, non-explosive, does not readily vaporize，Liquid without solid particles and fibers. The liquid can not react with the pump material. PH value range of 6.5 to 8.5.
$613.80
$990.00
Save 38%Weight: 17.00 lb.
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
Features
Application
- Applicable to household water supply, equipment support, pipeline pressurization, garden watering, vegetable greenhouse watering, fish farming and poultry raising, industrial and mining, water supply and drainage of enterprises and highrise buildings, central air conditioner and centralized heating circulation system, water supply and drainage of enterprises.
- Can also be used to transfer clean water or other liquids similar to water in physical and chemical properties.
- Note: Not intended for liquids containing chemicals, corrosive fluids, or high-viscosity materials (e.g., oils, grease, or paint). Use with these fluids will void the pump warranty.
Pump
- AISI304 welding shaft
- AISI 304 Stainless steel impeller
- Base Q235 Steel
- Maximum Operating pressure is 10 bar (approx. 145 PSI)
- Maximum inlet pressure: limited by Max. operating pressure
- Maximum liquid temperature: 140° F (60°C )
- Altitude: up to 3,280 feet (1,000 meters)
- Pipe Connections: Standard Inlet diameter G1 1/4, outlet G1, Internal thread connection
- GPM/LPM 17.6 G /66.67 L at 44.5% Efficiency rate
- Pump flow rate(m³/h)： 4
- Overall efficiency(%): 44.5
Motor
- Three Phase
- Motor Poles: 2
- Motor with copper winding
- Built-in thermal protector for single phase motor
- Insulation Class F (can withstand a maximum operating temperature of 155°C (311°F))
- IPX4 Protection Class (High Humidity, Splashing)
- Maximum ambient temperature 104°F (40° C)
- Motor power: Kw 1.8 (1/2) HP (60 Hz)
- Total weight approx. 19 lbs.
- Package size(inches/mm)：17.55" X 9.6" X 9.8" / 446 X 244 X 251 (mm)
Warranty 2 years.
Nomenclature of Leo EMH Models
Please refer to the image below for codification. Click on the image to expand
Leo EMH Series
Leo EMH4-6 Specs Leo EMH4-6- EMH4-6
Data sheet
- Pump Duty Cycle
- Continuos
- Pump Frequency
- 60 Hz
- Pump Height
- 7.2"
- Pump Horsepower
- .5 (1/2)
- Pump Housing
- Stainless Steel
- Pump Impeller Material
- AISI 304 Stainless Steel
- Pump Phases
- 3
- Seal Material
- SIC/Carbon
- Ambient Temperature
- 104°F (40° C)
- Pump Thermal Overload Protection
- Yes
- Warranty
- 2 years
- Impeller Stages
- 6
- Max Liquid temp.
- 140 °F (60°C)
- Inlet Diameter
- G1 1/4
- Outlet diameter
- G1
The Leo Horizontal Multistage Pump EMH4-6 is designed for these applications; household water supply, equipment support, pipeline pressurization, garden and greenhouse watering. It can also be used for fish farming, poultry raising, industrial and mining, water supply and drainage of enterprises and high-rise buildings, central A/C and centralized heating circulation systems.
Not intended for liquids containing chemicals, corrosive fluids, or high-viscosity materials (e.g., oils, grease, or paint). Use with these fluids will void the pump warranty.
The Leo EMH4-6 features .5 (1/2) HP, rated for 1.8 kW 3 phase 6 stage motor 220V, altitude up to 1000 meters (3,280 feet). Corrosion resistant AISI 304 stainless steel pump body and shaft and motor insulation Class F (operating temperature of 311°F (155°C).
Maximum liquid temperature up to 140 °F (60°C) consisting of clean, thin, non-corrosive, non-flammable, non-explosive, does not readily vaporize，Liquid without solid particles and fibers. The liquid can not react with the pump material. PH value range of 6.5 to 8.5.
