Jomar HPBFV-600-SS-150-GO Lug Style Butterfly Valve HP 1-piece S-Steel Metal Fire SafeANSI Class 150 Gear Operated ISO 5211
HPBFV-600-SS-150-GO-FG
Review (0)
      Jomar HPBFV-600-SS-150-GO Lug Style Butterfly Valve HP 1-piece S-Steel Metal Fire SafeANSI Class 150 Gear Operated ISO 5211
      Jomar HPBFV-600-SS-150-GO Lug Style Butterfly Valve HP 1-piece S-Steel Metal Fire SafeANSI Class 150 Gear Operated ISO 5211

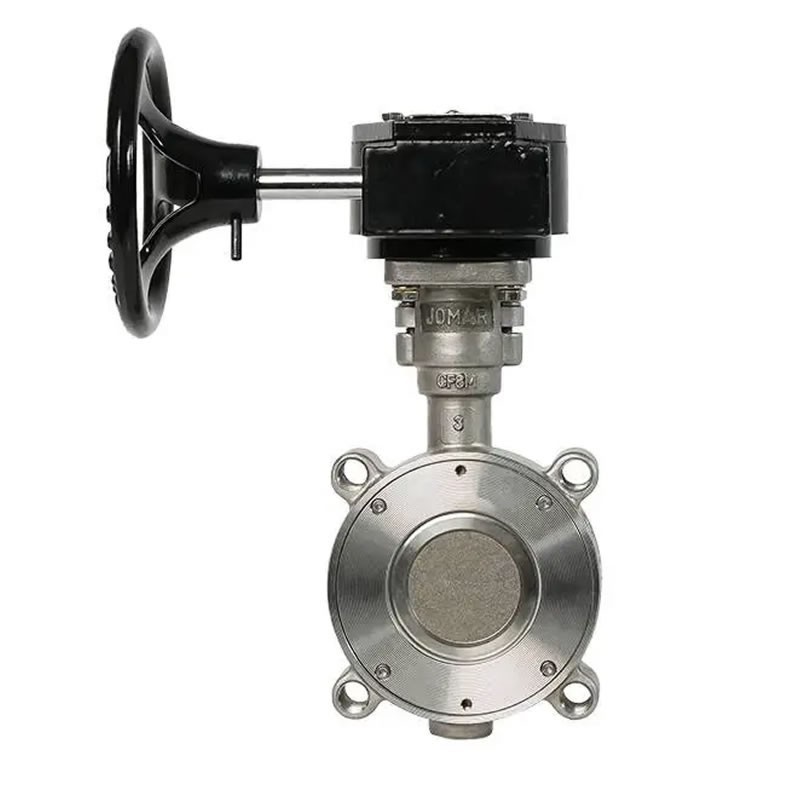

      Jomar HPBFV-600-SS-150-GO Lug HP Butterfly Valve S-Steel Fire Safe
      Move your mouse over image or click to enlarge

      The Jomar HPBFV-600-SS-150-GO Lug Style Butterfly Valve features a corrosion resistant one Piece body of Stainless Steel Body and Disc, Fire-Safe Metal Seats seats and Square Stem for Direct Mount ISO 5211 Mounting Pad.  The valve also features a Bubble-Tight Shut-off Design, Dual offset disc design with an internal stop to prevent Disc over-travel,  Tight Gland Packing Flange to Prevent Uneven Load Distribution, Bidrectional for Dead End Service, 29 in-Hg vacuum rating, gear Operated and ANSI 150 Class.

      Available in sizes from 2" to 12".

      Jomar Valve
      $1,273.87
      $2,497.78
      Save 49%
      Typically ships within 1-2 business days
      Quantity :
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Free Shipping - Free Shipping - Free delivery on most products unless otherwise stated
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Jomar HPBFV-600-SS-150-GO Lug Style Butterfly Valve Stainless Steel Body and disc, Fire-Safe Metal Seats and Gear operated features:

        • Corrosion Resistant One-Piece Body ANSI 150 class
        • Available in RPTFE or Fire-Safe Metal Seats
        • Bubble-Tight Shut-off Design
        • Durable One-Piece Stem: A564 Gr.630/17-4 PH® Materials
        • ISO 5211 Mounting Pad: 2” - 12” = Square Design, 14” - 24” = Keyed Design
        • Dual Offset Disc Design
        • Internal Stop to Prevent Disc Over-Travel
        • Tight Gland Packing Flange to Prevent Uneven Load Distribution
        • Bidrectional for Dead End Service
        • 29 in-Hg Vacuum Rating
        • Temperature Rating: (°F) -20° to 446° (-29 °C to 230 °C)

        Valve Seat Rating

        • Basic Design = API 609, MSS-SP-68, BS 5155, ISO 5752
        • Pressure / Temperature Rating = ANSI B16.34
        • Shell / Seat Test = API 598, MSS-SP-61
        • Working Pressure = Class 150 (285 PSIG)
        • Metal to Metal Seat Leakage: Class IV per ASME/FCI 70-2
        Summary Specifications (Please see attachment for full specs.)
        Size 2" 2 1/2" 3" 4" 5" 6" 8" 10" 12"
        ISO 5211 F07 F07 F07 F07 F07 F07 F07 F10 F10
        Weight (in lbs.) 17 19 20.4 28 33.3 51.1 62.7 90.3 135.5
        HPBFV-600-SS-150 Specification
        Jomar HPBFV-600-SS-150

      • Jomar Valve
        HPBFV-600-SS-150-GO-FG

        Data sheet

        Valve Type
        Butterfly Valve
        Valve Size
        2" 2.5 (2 1/2") 3" 4" 5" 6" 8" 10" 12"
        Valve Temperature Range
        -20° to 446° F (°C-29 to 230)
        Valve Body Material
        Stainless Steel
        Valve Disc Material
        Stainless Steel
        Valve Connection
        ANSI 150 Lug
        Valve PSI
        285
        Valve Configuration
        2-Way
        Valve Operation
        Gear Operated
        Valve Seat
        Metal Fire Safe
