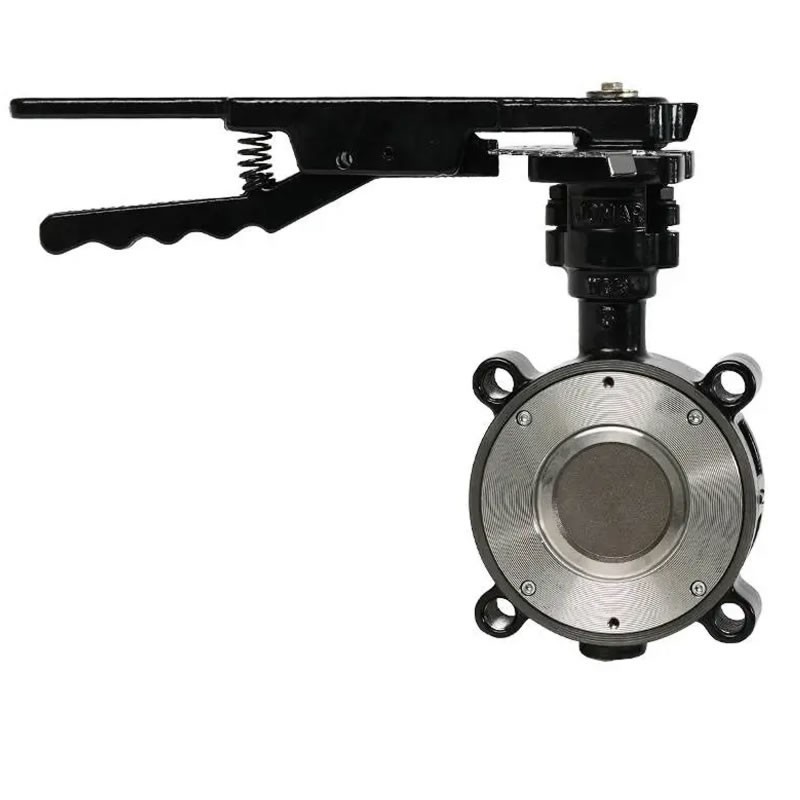

Jomar HPBFV-600-CS Lug Style High Performance Butterfly Valve Epoxy Coated Carbon Steel Metal Fire Safe Seat SS Disc ANSI 150
HPBFV-600-CS-150-LH-MFS
The Jomar HPBFV-600-CS-150-LH Lug Style Butterfly Valve features a corrosion resistant one Piece body of Epoxy-Coated Carbon Steel Body, Stainless Steel Disc, Metal Fire Safe seats and Square Stem for Direct Mount ISO 5211 Mounting Pad. The valve also features a Bubble-Tight Shut-off Design, Dual offset disc design with an internal stop to prevent Disc over-travel, Tight Gland Packing Flange to Prevent Uneven Load Distribution, Bidrectional for Dead End Service, 29 in-Hg vacuum rating, lever operated and ANSI 150 class.
Available in sizes from 2" to 6".
$973.93
$1,770.79
Save 45%Typically ships within 1-2 business days
Security - Rest assured. Our site is encrypted and we do not store any payment information
Free Shipping - Free delivery on most products unless otherwise stated
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Jomar HPBFV-600-CS-150-LH Lug Style Butterfly Valve Epoxy-Coated Carbon Steel Body, Stainless Steel disc Fire-Safe Metal Seats, lever operated valve features:
- Corrosion Resistant One-Piece Body ANSI 150 class.
- Available in RPTFE or Fire-Safe Metal Seats
- Bubble-Tight Shut-off Design
- Durable One-Piece Stem: A564 Gr.630/17-4 PH® Materials
- ISO 5211 Mounting Pad: 2” - 12” = Square Design, 14” - 24” = Keyed Design
- Dual Offset Disc Design
- Internal Stop to Prevent Disc Over-Travel
- Tight Gland Packing Flange to Prevent Uneven Load Distribution
- Bidrectional for Dead End Service
- 29 in-Hg Vacuum Rating
- Temperature Rating: (°F) -20° to 446° (-29 °C to 230 °C)
Valve Seat Rating
- Basic Design = API 609, MSS-SP-68, BS 5155, ISO 5752
- Pressure / Temperature Rating = ANSI B16.34
- Shell / Seat Test = API 598, MSS-SP-61
- Working Pressure = Class 150 (285 PSIG)
- Metal to Metal Seat Leakage: Class IV per ASME/FCI 70-2
Summary Specifications (Please see attachment for full specs.)
Size 2" 2 1/2" 3" 4" 5" 6" ISO 5211 F07 F07 F07 F07 F07 F07 Operation Lever Handle Lever Handle Lever Handle Lever Handle Lever Handle Lever Handle Weight (in lbs.) 10.8 12.8 14.1 21.8 27.10 34.8 HPBFV-600-CS-150 Specification Jomar BFV-Wafer- HPBFV-600-CS-150-LH-MFS
Data sheet
- Valve Type
- Butterfly Valve
- Valve Size
- 2" 2.5 (2 1/2") 3" 4" 5" 6"
- Valve Temperature Range
- -20° to 446° F (°C-29 to 230)
- Valve Body Material
- Carbon Steel Expoxy Coated
- Valve Disc Material
- Stainless Steel
- Valve Connection
- ANSI 150 Lug
- Valve PSI
- 285
- Valve Configuration
- 2-Way
- Valve Operation
- Manual
- Valve Seat
- Metal Fire Safe
