Jomar HPBFV-600-CS Lug Style Butterfly Valve High Performance Epoxy Coated Carbon Steel RPTFE Seat SS Disc ANSI Class 150 Gear
HPBFV-600-CS-150-GO-RPTFE
Review (0)
      Jomar HPBFV-600-CS Lug Style Butterfly Valve High Performance Epoxy Coated Carbon Steel RPTFE Seat SS Disc ANSI Class 150 Gear
      Jomar HPBFV-600-CS Lug Style Butterfly Valve High Performance Epoxy Coated Carbon Steel RPTFE Seat SS Disc ANSI Class 150 Gear

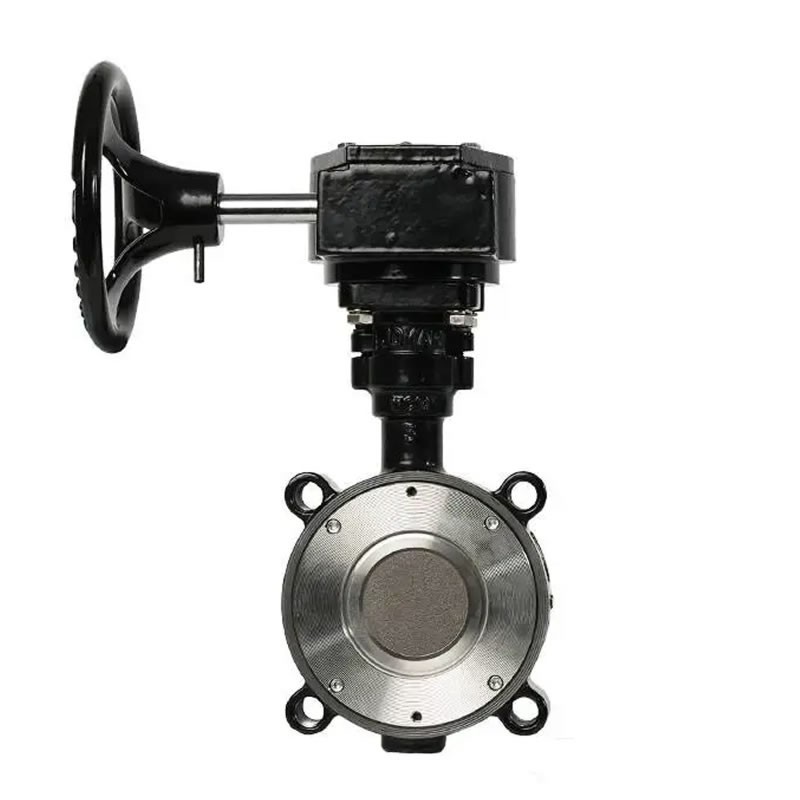

      Jomar HPBFV-600-CS Lug High Performance Butterfly Valve Carbon Steel
      Move your mouse over image or click to enlarge

      The Jomar HPBFV-600-CS-150-GO Lug Style Butterfly Valve features a corrosion resistant one Piece body of Epoxy-Coated Carbon Steel Body, Stainless Steel Disc, RPTFE seats and Square Stem for Direct Mount ISO 5211 Mounting Pad.  The valve also features a Bubble-Tight Shut-off Design, Dual offset disc design with an internal stop to prevent Disc over-travel,  Tight Gland Packing Flange to Prevent Uneven Load Distribution, Bidrectional for Dead End Service, 29 in-Hg vacuum rating, gear Operated and ANSI 150 Class.

      Available in sizes from 2" to 24".

      Jomar Valve
      $879.65
      $1,599.37
      Save 45%
      Typically ships within 1-2 business days
      Quantity :
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Free Shipping - Free Shipping - Free delivery on most products unless otherwise stated
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Jomar HPBFV-600-CS-150-LH Lug Style Butterfly Valve Epoxy-Coated Carbon Steel Body, Stainless Steel disc RPTFE seat, Gear operated valve features:

        • Corrosion Resistant One-Piece Body ANSI 150 class
        • Available in RPTFE or Fire-Safe Metal Seats
        • Bubble-Tight Shut-off Design
        • Durable One-Piece Stem: A564 Gr.630/17-4 PH® Materials
        • ISO 5211 Mounting Pad: 2” - 12” = Square Design, 14” - 24” = Keyed Design
        • Dual Offset Disc Design
        • Internal Stop to Prevent Disc Over-Travel
        • Tight Gland Packing Flange to Prevent Uneven Load Distribution
        • Bidrectional for Dead End Service
        • 29 in-Hg Vacuum Rating
        • Temperature Rating: (°F) -20° to 446° (-29 °C to 230 °C)

        Valve Seat Rating

        • Basic Design = API 609, MSS-SP-68, BS 5155, ISO 5752
        • Pressure / Temperature Rating = ANSI B16.34
        • Shell / Seat Test = API 598, MSS-SP-61
        • Working Pressure = Class 150 (285 PSIG)
        • Metal to Metal Seat Leakage: Class IV per ASME/FCI 70-2
        Summary Specifications (Please see attachment for full specs.)
        Size 2" 2 1/2" 3" 4" 5" 6" 8" 10" 12" 14" 16" 18" 20" 24"
        ISO 5211 F07 F07 F07 F07 F07 F07 F07 F10 F10 F14 F16 F16 F16 F16
        Weight (in lbs.) 17 19 20.4 28 33.3 51.1 62.7 90.3 135.5 169.4 290.8 319.6 473.1 751.2
        HPBFV-600-CS-150 Specification
        Jomar BFV-Wafer

      • Jomar Valve
        HPBFV-600-CS-150-GO-RPTFE

        Data sheet

        Valve Type
        Butterfly Valve
        Valve Size
        2" 2.5 (2 1/2") 3" 4" 5" 6" 8" 10" 12" 14" 16" 18" 20" 24"
        Valve Temperature Range
        -20° to 446° F (°C-29 to 230)
        Valve Body Material
        Carbon Steel Expoxy Coated
        Valve Disc Material
        Stainless Steel
        Valve Connection
        ANSI 150 Lug
        Valve PSI
        285
        Valve Configuration
        2-Way
        Valve Operation
        Gear Operated
        Valve Seat
        RPTFE
