Jomar HPBFV-600-CS-300-LH Lug Style Butterfly Valve HP Epoxy Coated Carbon Steel RPTFE SS Disc ANSI Class 300 ISO 5211 lever
HPBFV-600-CS-300-LH-RL
Review (0)
      Jomar HPBFV-600-CS-300-LH Lug Style Butterfly Valve HP Epoxy Coated Carbon Steel RPTFE SS Disc ANSI Class 300 ISO 5211 lever
      Jomar HPBFV-600-CS-300-LH Lug Style Butterfly Valve HP Epoxy Coated Carbon Steel RPTFE SS Disc ANSI Class 300 ISO 5211 lever

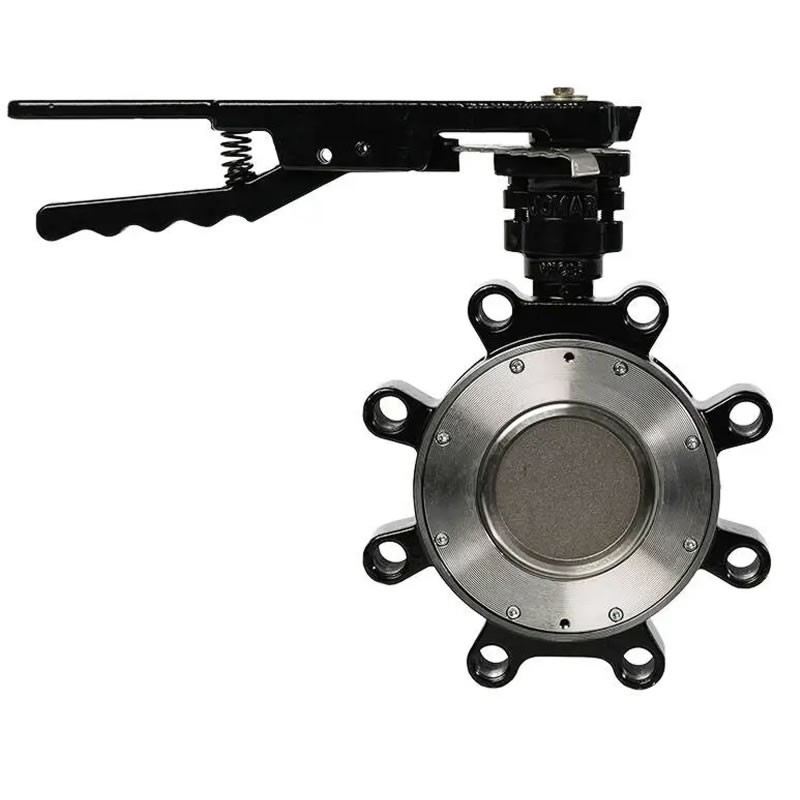

      Jomar HPBFV-600-CS-300 Lug HP Butterfly Valve Carbon Steel ANSI 300
      Move your mouse over image or click to enlarge

      The Jomar HPBFV-600-CS-300-LH Lug Style Butterfly Valve features a corrosion resistant one Piece body of Epoxy-Coated Carbon Steel Body, Stainless Steel Disc, RPTFE seats and Square Stem for Direct Mount ISO 5211 Mounting Pad.  The valve also features a Bubble-Tight Shut-off Design, Dual offset disc design with an internal stop to prevent Disc over-travel,  Tight Gland Packing Flange to Prevent Uneven Load Distribution, Bidrectional for Dead End Service, 29 in-Hg vacuum rating, lever operated and ANSI 300 class.

      Available in sizes from 2" to 4".

      Jomar Valve
      $933.26
      $1,637.30
      Save 43%
      Typically ships within 1-2 business days
      Quantity :
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Free Shipping - Free Shipping - Free delivery on most products unless otherwise stated
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Jomar HPBFV-600-CS-300-LH Lug Style Butterfly Valve Epoxy-Coated Carbon Steel Body, Stainless Steel disc RPTFE seat, lever operated valve features:

        • Corrosion Resistant One-Piece Body ANSI 300 class
        • Available in RPTFE or Fire-Safe Metal Seats
        • Bubble-Tight Shut-off Design
        • Durable One-Piece Stem: A564 Gr.630/17-4 PH® Materials
        • ISO 5211 Mounting Pad: 2” - 12” = Square Design, 14” - 24” = Keyed Design
        • Dual Offset Disc Design
        • Internal Stop to Prevent Disc Over-Travel
        • Tight Gland Packing Flange to Prevent Uneven Load Distribution
        • Bidrectional for Dead End Service
        • 29 in-Hg Vacuum Rating
        • Temperature Rating: (°F) -20° to +450º (-29 °C to 232 °C)

        Valve Seat Rating

        • Basic Design = API 609, MSS-SP-68, BS 5155, ISO 5752
        • Pressure / Temperature Rating = ANSI B16.34
        • Shell / Seat Test = API 598, MSS-SP-61
        • Working Pressure = Class 300 (740 PSIG)
        • Metal to Metal Seat Leakage: Class IV per ASME/FCI 70-2
        Summary Specifications (Please see attachment for full specs.)
        Size 2" 2 1/2" 3" 4"
        ISO 5211 F07 F07 F07 F07
        Weight (in lbs.) 10.6 15.7 16.1 21.8
        HPBFV-600-CS-300 Specification
        HPBFV-600-CS-300

      • Jomar Valve
        HPBFV-600-CS-300-LH-RL

        Data sheet

        Valve Type
        Butterfly Valve
        Valve Size
        2" 2.5 (2 1/2") 3" 4"
        Valve Temperature Range
        -20° to 450° F (°C-29 to 232)
        Valve Body Material
        Carbon Steel Expoxy Coated
        Valve Disc Material
        Stainless Steel
        Valve Connection
        ANSI 300 LUG
        Valve PSI
        740
        Valve Configuration
        2-Way
        Valve Operation
        Lever Operated
        Valve Seat
        RPTFE
