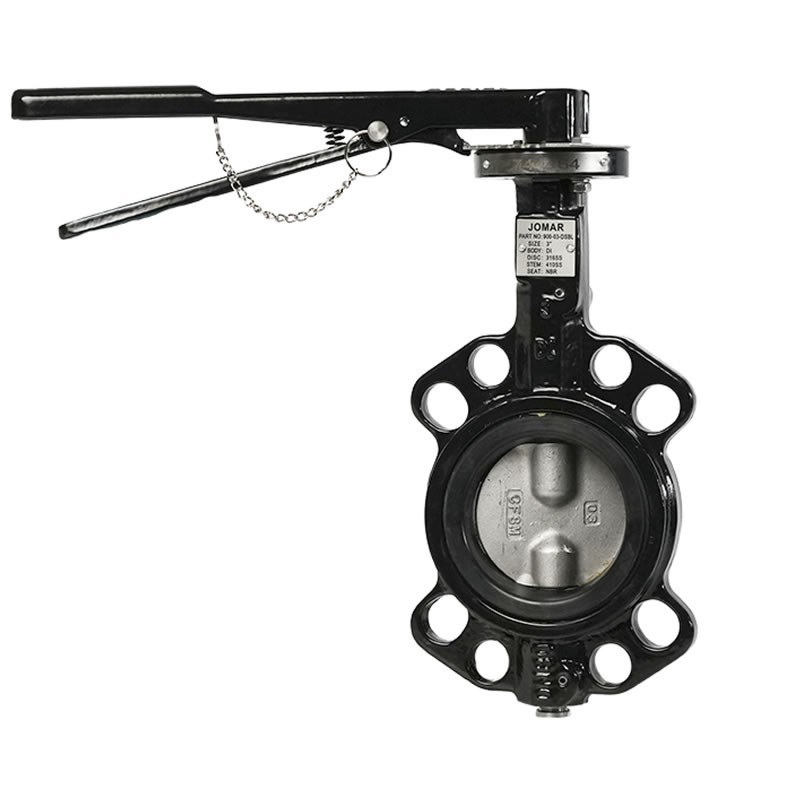

Jomar BFV-Wafer PTFE Butterfly Valve Wafer Style Epoxy-Coated Ductile Iron Body Stainless Steel Disc ISO 5211 Mounting Flange
BFV-WAFER-PTFE
Review (0)
      Jomar BFV-Wafer PTFE Butterfly Valve Wafer Style Epoxy-Coated Ductile Iron Body Stainless Steel Disc ISO 5211 Mounting Flange
      Jomar BFV-Wafer PTFE Butterfly Valve Wafer Style Epoxy-Coated Ductile Iron Body Stainless Steel Disc ISO 5211 Mounting Flange
      Jomar BFV-Wafer PTFE Butterfly Valve Wafer Style Epoxy-Coated Ductile Iron Body Stainless Steel Disc ISO 5211 Mounting Flange
      Jomar BFV-Wafer PTFE Butterfly Valve Wafer Epoxy-Coated Ductile Iron
      Move your mouse over image or click to enlarge
      Jomar BFV-Wafer PTFE Butterfly Valve Wafer Style Epoxy-Coated Ductile Iron Body Stainless Steel Disc ISO 5211 Mounting Flange Jomar BFV-Wafer PTFE Butterfly Valve Wafer Style Epoxy-Coated Ductile Iron Body Stainless Steel Disc ISO 5211 Mounting Flange

      The Jomar BFV-Wafer PTFE Wafer Style Butterfly Valve features Epoxy-Coated Ductile Iron Body, Stainless Steel Disc, PTFE seats and Square Stem for Direct Mount with ISO 5211 Mounting Flange.  The Seat-to-Flange Seal Eliminates Need for Flange Gaskets, designed for Commercial, Industrial and non Potable Water Applications up to 225 PSI.

      Available in sizes from 2" to 36".

      Jomar Valve
      $164.97
      $229.13
      Save 28%
      Typically ships within 1-2 business days
      Quantity :
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Free Shipping - Free Shipping - Free delivery on most products unless otherwise stated
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Jomar BFV-Wafer PTFE Wafer Style Butterfly Valve Epoxy-Coated Ductile Iron Body Stainless Steel disc PTFE seat, manually operated valve features:

        • Epoxy-Coated Finish
        • NSF EPDM, PTFE, Buna-N, Viton®, or Non-NSF EPDM Seats Available
        • Square Stem for Direct Mount
        • Ideal for Mounting Pneumatic/Electrical Actuators
        • Easily Accepts Actuator with ISO 5211 Mounting Flange
        • Seat-to-Flange Seal Eliminates Need for Flange Gaskets
        • Designed for Commercial and Industrial Applications up to 225 PSI
        • NSF 61 & NSF 372 Certified: 2” - 24” (NSF EPDM Seat Only)
        • Meets API 609 & MSS SP-67
        • Wetted Surfaces Contain Less than .25% Lead Content
        • Temperature Range PTFE (°F) -20° to 250° (-29 °C to 121 °C)

        Certifications/Approvals

        • API 609
        • MSS SP-67
        • NSF 61 / NSF 372: 2” - 24” (EPDM Seat Only)
        Summary Specifications (Please see attachment for full specs.)
        Size 2" 2 1/2" 3" 4" 5" 6" 8" 10" 12" 14" 16" 18" 20" 24" 30" 36"
        ISO 5211 F05 F05 F05 F07 F07 F07 F10 F10 F10 F10 F14 F14 F14 F16
        Operation Lever Handle Lever Handle Lever Handle Lever Handle Lever Handle Lever Handle Bare Stem Gear Operator Gear Operator Gear Operator Gear Operator Gear Operator Gear Operator Gear Operator Gear Operator Gear Operator
        Weight (in lbs.) 7.71 9.7 10.36 12.78 17.2 19.4 33.22 64.48 88.18 116.84 200.62 220.46 326.28 518.09

        ** Sizes 30" - 36" Call for pricing and availability

        BFV - Wafer Specification
        Jomar BFV-Wafer

      • Jomar Valve
        BFV-WAFER-PTFE

        Data sheet

        Valve Type
        Butterfly Valve
        Valve Size
        2" 2.5 (2 1/2") 3" 4" 5" 6" 8" 10" 12" 14" 16" 18" 20" 24" 30" 36"
        Valve Temperature Range
        -20° to 250° F (°C-29 to 121)
        Valve Body Material
        Ductile Iron Expoxy coated
        Valve Disc Material
        Stainless Steel
        Valve Connection
        Wafer Style Flanged
        Valve PSI
        250
        Valve Configuration
        2-Way
        Valve Operation
        Gear Operated Manual
        Valve Seat
        PTFE
