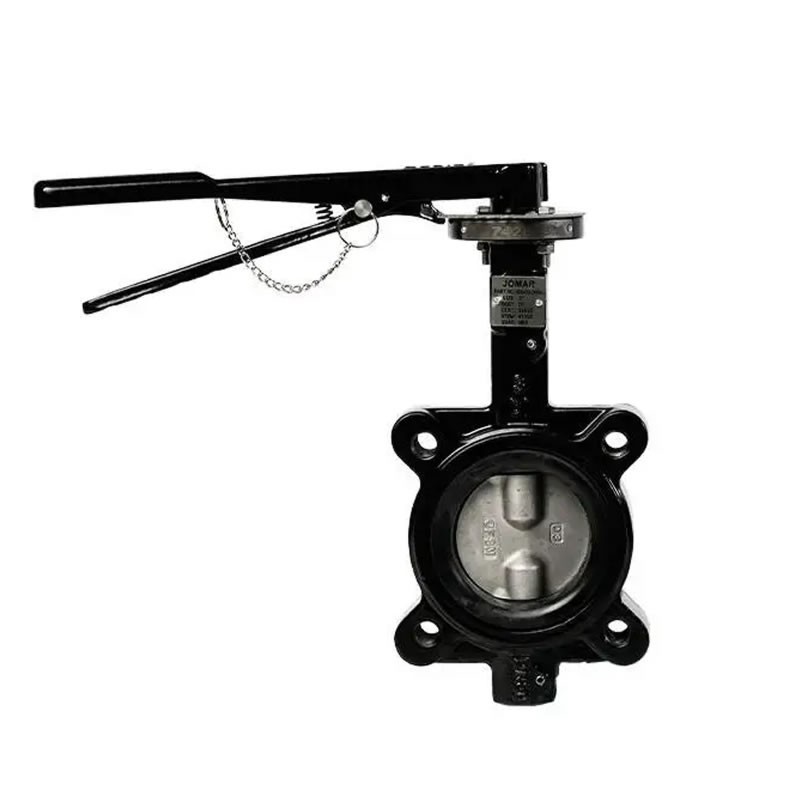

Jomar BFV-LUG Viton Butterfly Valve Lug Style Epoxy-Coated Ductile Iron Body Stainless Steel Disc ISO 5211 Mounting Flange
BFV-LUG-VITON
The Jomar BFV-Lug Viton Lug Style Butterfly Valve features Epoxy-Coated Ductile Iron Body, Stainless Steel Disc, Viton seats and Square Stem for Direct Mount with ISO 5211 Mounting Flange. The Seat-to-Flange Seal Eliminates Need for Flange Gaskets, designed for Commercial, Industrial and NON Potable Water Applications up to 225 PSI.
Available in sizes from 2" to 36".
$269.68
$369.43
Save 27%Typically ships within 1-2 business days
Security - Rest assured. Our site is encrypted and we do not store any payment information
Free Shipping - Free delivery on most products unless otherwise stated
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Jomar BFV-Lug Viton Lug Style Butterfly Valve Epoxy-Coated Ductile Iron Body Stainless Steel disc Viton seat, manually operated valve features:
- Epoxy-Coated Finish
- NSF EPDM, PTFE, Buna-N, Viton®, or Non-NSF EPDM Seats Available
- Square Stem for Direct Mount
- Ideal for Mounting Pneumatic/Electrical Actuators
- Easily Accepts Actuator with ISO 5211 Mounting Flange
- Seat-to-Flange Seal Eliminates Need for Flange Gaskets
- Designed for Commercial and Industrial Applications up to 225 PSI
- Bidirectional for Dead End Service
- NSF 61 & NSF 372 Certified: 2” - 24” (NSF EPDM Seat Only)
- Meets API 609 & MSS SP-67
- Wetted Surfaces Contain Less than .25% Lead Content
- Temperature Range Viton (°F) 10° to 300°
Certifications/Approvals
- API 609
- MSS SP-67
Summary Specifications (Please see attachment for full specs.)
Size 2" 2 1/2" 3" 4" 5" 6" 8" 10" 12" 14" 16" 18" 20" 24" 30" 36" ISO 5211 F05 F05 F05 F07 F07 F07 F10 F10 F10 F10 F14 F14 F14 F16 F25 F25 Operation Lever Handle Lever Handle Lever Handle Lever Handle Lever Handle Lever Handle Bare Stem Gear Operator Gear Operator Gear Operator Gear Operator Gear Operator Gear Operator Gear Operator Gear Operator Gear Operator Weight (in lbs.) 9.7 11.02 12.13 18.3 24.12 26.14 41.6 77.16 111.55 154.32 264.55 326.28 473.99 650.36 939.17 1604.96 ** Sizes 30" - 36" Call for pricing and availability
BFV - LUG Specification Jomar BFV-LUG- BFV-LUG-VITON
Data sheet
- Valve Type
- Butterfly Valve
- Valve Size
- 2" 2.5 (2 1/2") 3" 4" 5" 6" 8" 10" 12" 14" 16" 18" 20" 24" 30" 36"
- Valve Temperature Range
- 10° to 300°F (°C -12 to 148)
- Valve Body Material
- Ductile Iron Expoxy coated
- Valve Disc Material
- Stainless Steel
- Valve Connection
- Lug Style
- Valve PSI
- 250
- Valve Configuration
- 2-Way
- Valve Operation
- Gear Operated Manual
- Valve Seat
- Viton
