Jomar TRAA-BFF-Q Lead Free Automatic Balancing Valve 3/4" Recirculation assembly Threaded Connection and Drain 400 WOG
TRAA-BFF-Q
Review (0)
      Jomar TRAA-BFF-Q Lead Free Automatic Balancing Valve 3/4" Recirculation assembly Threaded Connection and Drain 400 WOG
      Jomar TRAA-BFF-Q Lead Free Automatic Balancing Valve 3/4" Recirculation assembly Threaded Connection and Drain 400 WOG
      Jomar TRAA-BFF-Q Lead Free Automatic Balancing Valve 400 WOG
      Move your mouse over image or click to enlarge

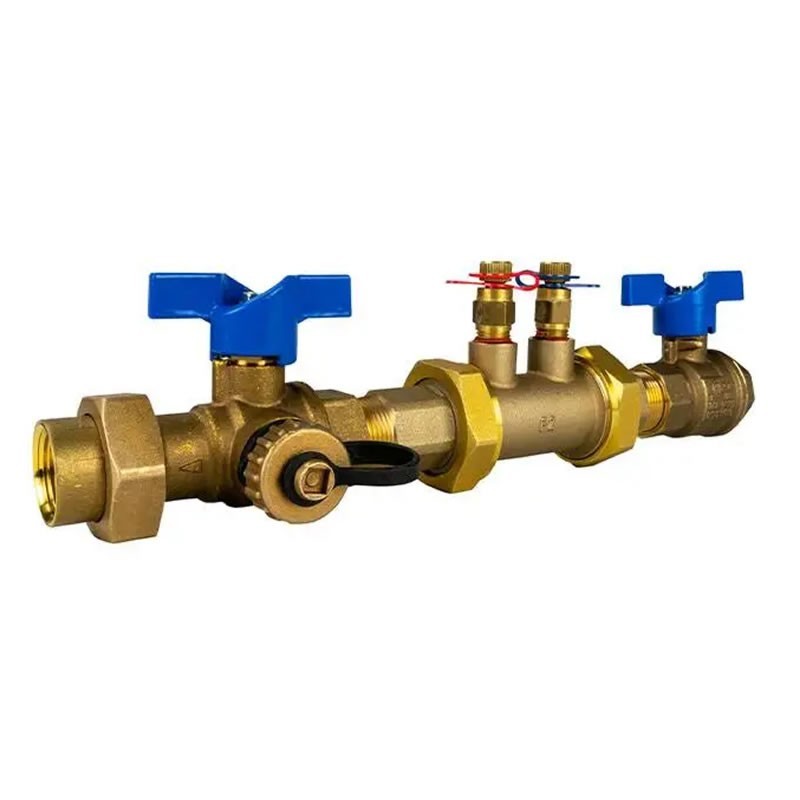

      The Jomar Valve TRAA-BFF-Q Lead Free is an Automatic Balancing Valve, Dezincification Resistant Brass, Fixed Venturi, Threaded Connection, Drain, 400 WOG.

      The valve features Dezincification Resistant Brass Alloy, Cartridge Type Balancing Valve Equipped with Isolation Valve with Integrated Drain, and Inline Check Valve.

      Available in size 3/4".

      Jomar Valve
      $220.01
      $323.55
      Save 32%
      Typically ships within 1-3 business days

      Weight: 1.90 lb.

      Quantity :
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Free Shipping - Free Shipping - Free delivery on most products unless otherwise stated
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The TRAA-BFF-Q Automatic Balancing Valve features:

        • Dezincification Resistant Brass Alloy
        • Cartridge Type Balancing Valve
        • Equipped with Isolation Valve with Integrated Drain, and Inline Check Valve
        • Patented Ball in Drain for Quarter-Turn Draining
        • Design Flow Rate is 0.5 GPM; Other Flow Rates Available Upon Request
        • 100% Pressure Tested
        • 100% Made in Italy
        • NSF 61/NSF 372 Certified
        • Wetted Surfaces Contain Less than .25% Lead Content
        Pressure Rating
        • 400 WOG
        • Up to 325°F (190° C)
        Certifications/Approvals
        • NSF
          • NSF 372
          • NSF 61-8
          • MSS SP-110
          • ASME/ANSI B16.8
        • Buy American Act Compliant

        Also available without drain TRAA-BFF

        View Detailed Valve Specifications
        Jomar

        TRAA-BFF-Q

        Specifications
        Jomar TRAA-BFF-Q

      • Jomar Valve
        TRAA-BFF-Q

        Data sheet

        Valve Type
        Automatic Balancing Valve
        Valve Size
        .75 ( 3/4")
        Valve Temperature Range
        Up to 375°F (°C 191)
        Valve Body Material
        Brass - Lead Free
        Valve Body Style
        Full Port
        Valve Connection
        FNPT
        Valve PSI
        400
        Valve Configuration
        2-Way
        Valve Operation
        Manual
