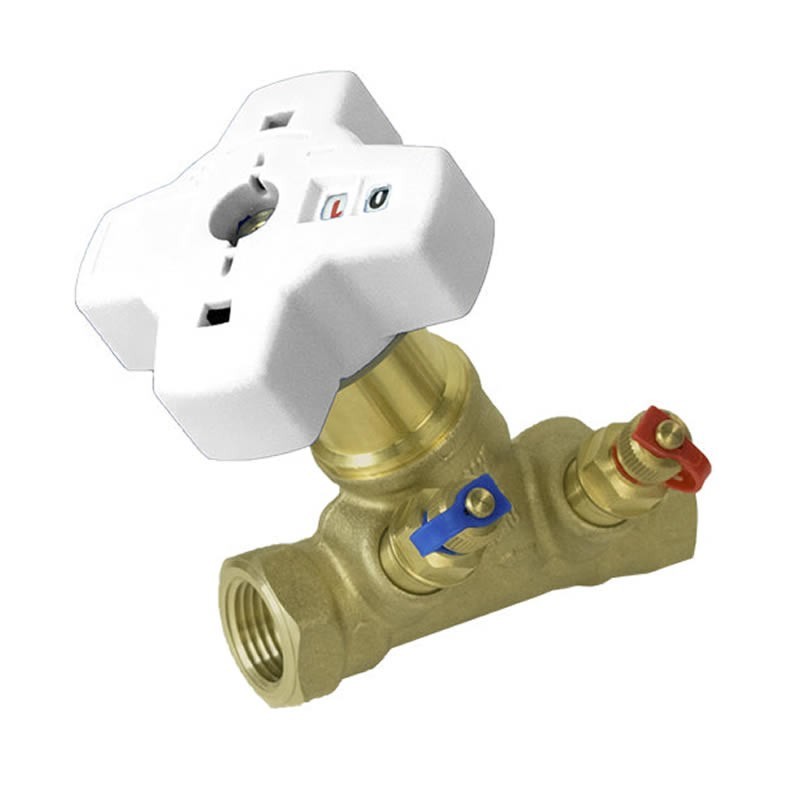

Jomar TGG Threaded Terminator G Manual Balancing Valve Multi-Turn Globe Y-Pattern Variable Orifice Memory Stop PT Ports 300 WOG
TGG–FNPT
The Jomar TGG Terminator G Manual Balancing Valve is a Multi-Turn Globe Valve with a Y-Pattern, Variable Orifice, FNPT Threaded Connection, Memory Stop, PT Ports, 300 WOG. The balancing valve features a Dezincification Resistant Brass Alloy, Positive Shut-Off, Two Pressure Test Ports, Multi-Turn, 360° Handwheel with Vernier Scale and Digital Readouts, Precise Flow Measurement and Flow Balancing and Lead Free Compliant to NSF 372.
Available in sizes 1/2" to 2".
$104.71
$151.75
Save 31%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
Jomar TGG Terminator G Manual Balancing Valve, Multi-Turn Globe Valve with a Y-Pattern FNPT Threaded features:
- Dezincification Resistant Brass Alloy
- +/-5% Accuracy
- Positive Shut-Off
- Offsetting pressure/temperature ports (2)
- Multi-Turn, 360° Handwheel with Vernier Scale and Digital Readouts
- Precise Flow Measurement and Flow Balancing
- Built-in memory stop
- Contains less than 0.25% lead content by weight on wetted surfaces
- Wetted Surfaces Contain Less than .25% Lead Content
- Lead Free Compliant to NSF 372
Pressure/Temperature Rating
- 300 PSI
- -4ºF to 250°F (°C -20 to 121)
Summary Specifications (Please see attachment for full specs.)
Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" Model TGG-AFF TGG-BFF TGG-CFF TGG-DFF TGG-EFF TGG-FFF Weight (lbs.) 1.6 1.6 1.9 2.1 2.9 3.4 View Detailed Valve Specifications
Jomar TAF Specs. Jomar TGG- TGG–FNPT
Data sheet
- Valve Type
- Manual Balancing
- Valve Size
- .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
- Valve Temperature Range
- -4° to 250° F (°C -20 to 121)
- Valve Body Material
- Brass - Lead Free
- Valve Body Style
- Full Port
- Valve Connection
- Threaded
- Valve PSI
- 300
- Valve Configuration
- 2-Way
- Valve Operation
- Manual
No customer reviews for the moment.
The Jomar TGG Terminator G Manual Balancing Valve is a Multi-Turn Globe Valve with a Y-Pattern, Variable Orifice, FNPT Threaded Connection, Memory Stop, PT Ports, 300 WOG. The balancing valve features a Dezincification Resistant Brass Alloy, Positive Shut-Off, Two Pressure Test Ports, Multi-Turn, 360° Handwheel with Vernier Scale and Digital Readouts, Precise Flow Measurement and Flow Balancing and Lead Free Compliant to NSF 372.
Available in sizes 1/2" to 2".
