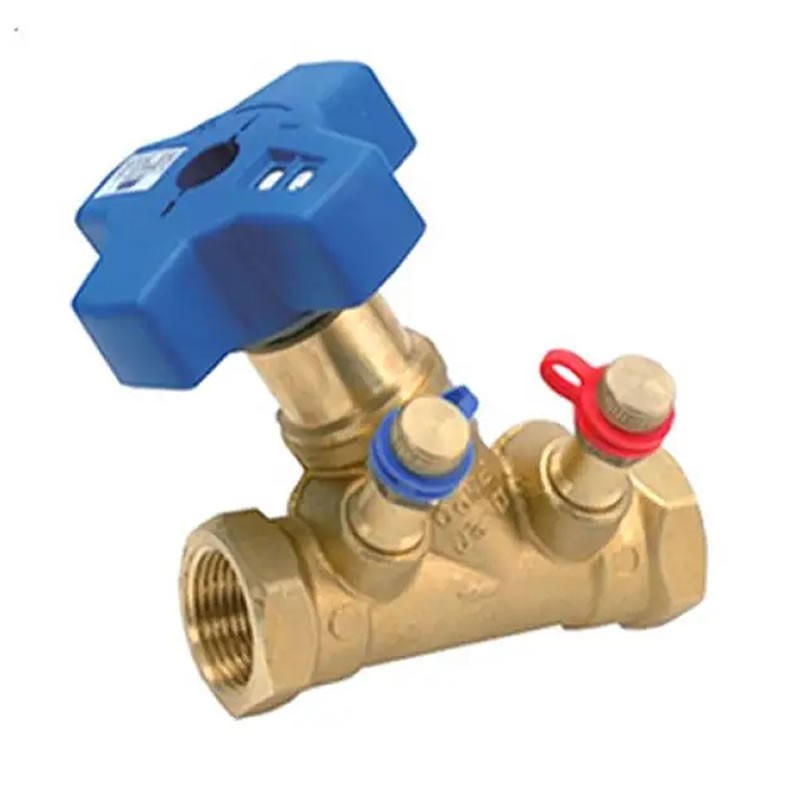

Jomar TG–FNPT Globe Brass Valve Manual Balancing Multi-Turn Variable Orifice Threaded Connection Memory Stop PT Ports 300 WOG
TG–FNPT
The Jomar TG–FNPT part of the Terminator G series is a Y-pattern, multi-turn globe-style manual balancing valve. The Balancing and Measurement is its core function, it allows for the precise measurement and balancing of flow in a fluid system. Crucial for ensuring that each part of a system, receives the correct flow rate for optimal performance. Features a built-in memory stop allowing the valve to be fully shut off for maintenance and then returned to its exact pre-set balancing position, ensuring the system remains balanced after service.
The Jomar TG–FNPT also features variable Orifice, FNPT threaded Connection, dezincification resistant brass alloy body, 2 PT (Pressure Test) Ports, 300 WOG. Multi-Turn, 360° Hand wheel with Vernier Scale and Digital Readouts Precise Flow Measurement and Flow Balancing.
Available in sizes 1/2" to 2".
$74.79
$108.39
Save 31%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
Jomar TG-FNPT Terminator G series Manual Balancing Valve, Multi-Turn Globe Valve with a Y-Pattern FNPT Threaded features:
- Dezincification Resistant Brass Alloy
- Positive Shut-Off
- Two Pressure Test Ports
- Multi-Turn, 360° Handwheel with Vernier Scale and Digital Readouts
- Precise Flow Measurement and Flow Balancing
- Built-in memory stop
- Precise flow measurement and flow balancing
Pressure/Temperature Rating
- 300 PSI
- -4ºF to 250°F (°C -20 to 121)
Summary Specifications (Please see attachment for full specs.)
Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" Model TG-AFF TG-BFF TG-CFF TG-DFF TG-EFF TG-FFF Weight (lbs.) 1.6 1.6 1.9 2.1 2.9 3.4 View Detailed Valve Specifications
Jomar TG–FNPT Specs. Jomar TG–FNPT- TG–FNPT
Data sheet
- Valve Type
- Manual Balancing
- Valve Size
- .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
- Valve Temperature Range
- -4° to 250° F (°C -20 to 121)
- Valve Body Material
- Brass
- Valve Body Style
- Full Port
- Valve Connection
- FNPT
- Valve PSI
- 300
- Valve Configuration
- 2-Way
- Valve Operation
- Manual
