Jomar Terminator B TB-FNPT Manual Balancing Valve 1/4 Turn Threaded Connection Union End with Integrated Ball Valve 600 WOG
TB-FNPT
Review (0)
      Jomar Terminator B TB-FNPT Manual Balancing Valve 1/4 Turn Threaded Connection Union End with Integrated Ball Valve 600 WOG
      Jomar Terminator B TB-FNPT Manual Balancing Valve 1/4 Turn Threaded Connection Union End with Integrated Ball Valve 600 WOG
      Jomar Terminator B TB-FNPT Manual Balancing Valve 600 WOG
      Move your mouse over image or click to enlarge

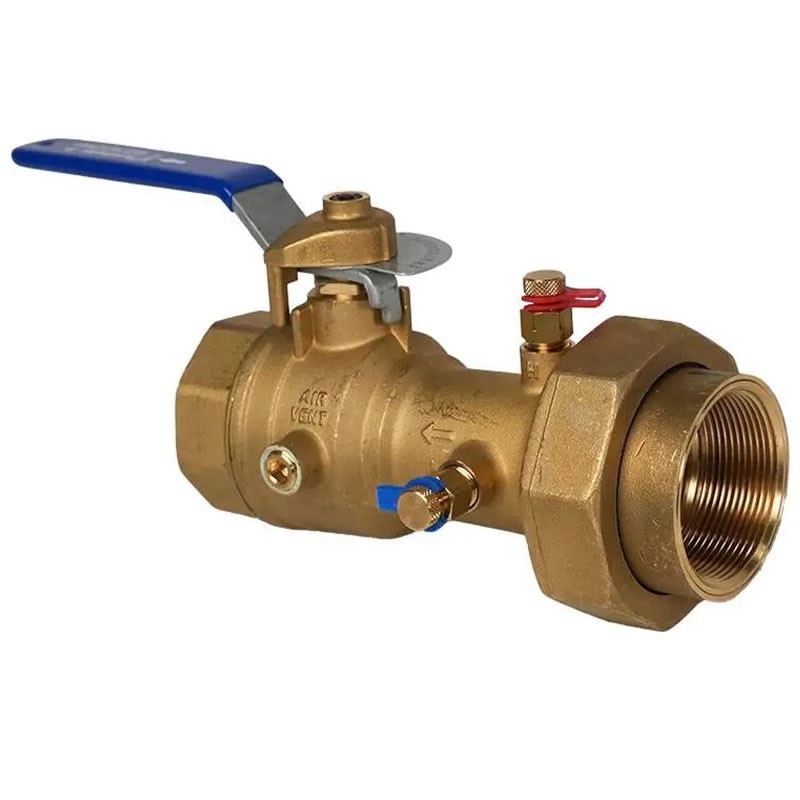

      The Jomar Valve Terminator series TB – FNPT is a Manual Balancing Valve, Quarter-Turn, Fixed Orifice, Threaded Connection, Union End, Integrated Ball Valve, Memory Stop, PT Ports, 600 WOG.

      The valve features Triple Sealing Stem with 2 Viton® O-Rings and Teflon Seal, Two Pressure Test Ports and Positive Shut-Off.

      Available in sizes 1/2" to 2".

      Jomar Valve
      $59.96
      $84.45
      Save 29%
      Typically ships within 1-3 business days
      Quantity :
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Free Shipping - Free Shipping - Free delivery on most products unless otherwise stated
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Terminator B TB-FNPT Manual Balancing Valve features:

        • +\- 2% Accuracy
        • Positive Shut-Off
        • Triple Sealing Stem with 2 Viton® O-Rings and Teflon Seal
        • Blow-Out Proof Stem
        • Patented Removable Venturi
        • Two Pressure Test Ports
        • 100% Leak Tested
        • 100% Made in Italy
        • Leakproof Stem - Lifetime Warranty
        Pressure Rating
        • 600 WOG
        • Up to 325°F (190° C)

        Also available with solder connection TB–SWT

        View Detailed Valve Specifications
        Terminator B TB Specifications
        Jomar Terminator B TB

      • Jomar Valve
        TB-FNPT

        Data sheet

        Valve Type
        Automatic Balancing Valve
        Valve Size
        .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
        Valve Temperature Range
        Up to 375°F (°C 191)
        Valve Body Material
        Brass
        Valve Body Style
        Full Port
        Valve Connection
        FNPT
        Valve PSI
        600
        Valve Configuration
        2-Way
        Valve Operation
        Manual
