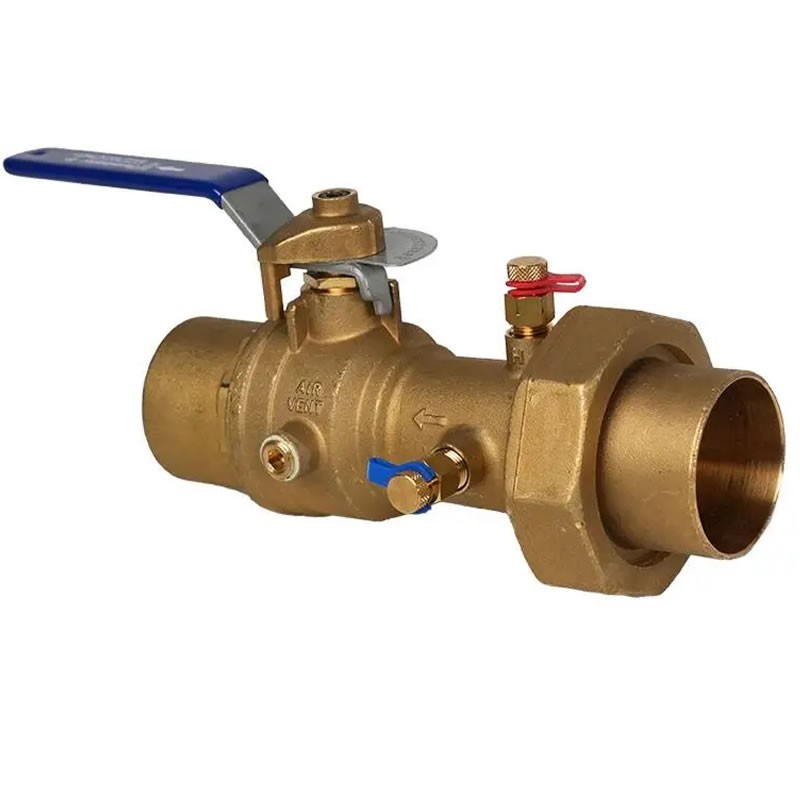

Jomar Terminator B Manual Balancing Valve 1/4 Turn Solder Connection Union End with Integrated Ball Valve 600 WOG
TB-SWT
      Jomar Terminator B Manual Balancing Valve 1/4 Turn Solder Connection Union End with Integrated Ball Valve 600 WOG
      Jomar Terminator B Manual Balancing Valve 1/4 Turn Solder Connection Union End with Integrated Ball Valve 600 WOG
      Jomar Terminator B Manual Balancing Valve 600 WOG Solder Connection

      The Jomar Valve Terminator series B – Solder connection is a Manual Balancing Valve, Quarter-Turn, Fixed Orifice, Solder Connection, Union End, Integrated Ball Valve, Memory Stop, PT Ports, 600 WOG.

      The valve features Triple Sealing Stem with 2 Viton® O-Rings and Teflon Seal, Two Pressure Test Ports and Positive Shut-Off.

      Available in sizes 1/2" to 2".

      Jomar Valve
      $72.03
      $101.45
      Save 29%

      Weight: 1.90 lb.

      Quantity :

      FREE UPS Shipping Order before 11:00 on Tuesday and receive it between 7/24/26 and 7/29/26 with FREE UPS Shipping

      Delivery Options
      Carrier Description Estimated Delivery
      FREE UPS Shipping 4-6 days

      7/24/26 - 7/29/26

      UPS 3 bus. days Ships same or next day 3 bus-days Same day/next (Valve&Actuator + 1-2)

      7/24/26 - 7/27/26

      UPS 2 bus. days 2 bus-days Same day/next (Valve&Actuator + 1-2)

      7/23/26 - 7/24/26

      UPS Next Day - 1 business Day Ships same day/next (Valve&Actuator + 1-2)

      7/22/26 - 7/23/26

      Carrier: FREE UPS Shipping

      Description: 4-6 days

      Estimated delivery:
      7/24/26 - 7/29/26

      Carrier: UPS 3 bus. days Ships same or next day

      Description: 3 bus-days Same day/next (Valve&Actuator + 1-2)

      Estimated delivery:
      7/24/26 - 7/27/26

      Carrier: UPS 2 bus. days

      Description: 2 bus-days Same day/next (Valve&Actuator + 1-2)

      Estimated delivery:
      7/23/26 - 7/24/26

      Carrier: UPS Next Day - 1 business Day

      Description: Ships same day/next (Valve&Actuator + 1-2)

      Estimated delivery:
      7/22/26 - 7/23/26

      X
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Terminator B Solder conection Manual Balancing Valve features:

        • +\- 2% Accuracy
        • Positive Shut-Off
        • Triple Sealing Stem with 2 Viton® O-Rings and Teflon Seal
        • Blow-Out Proof Stem
        • Patented Removable Venturi
        • Two Pressure Test Ports
        • 100% Leak Tested
        • 100% Made in Italy
        • Leakproof Stem - Lifetime Warranty
        Pressure Rating
        • 600 WOG
        • Up to 325°F (190° C)

        Also available with FNPT connection TB–FNPT

        View Detailed Valve Specifications
        Terminator B TB Specifications
        Jomar Terminator B TB

      • Jomar Valve
        TB-SWT

        Data sheet

        Valve Type
        Automatic Balancing Valve
        Valve Size
        .5, .75, 1", 1.5, 1.25, 2"
        Valve Temperature Range
        Up to 375°F (°C 191)
        Valve Body Material
        Brass
        Valve Body Style
        Full Port
        Valve Connection
        Solder
        Valve PSI
        600
        Valve Configuration
        2-Way
        Valve Operation
        Manual
