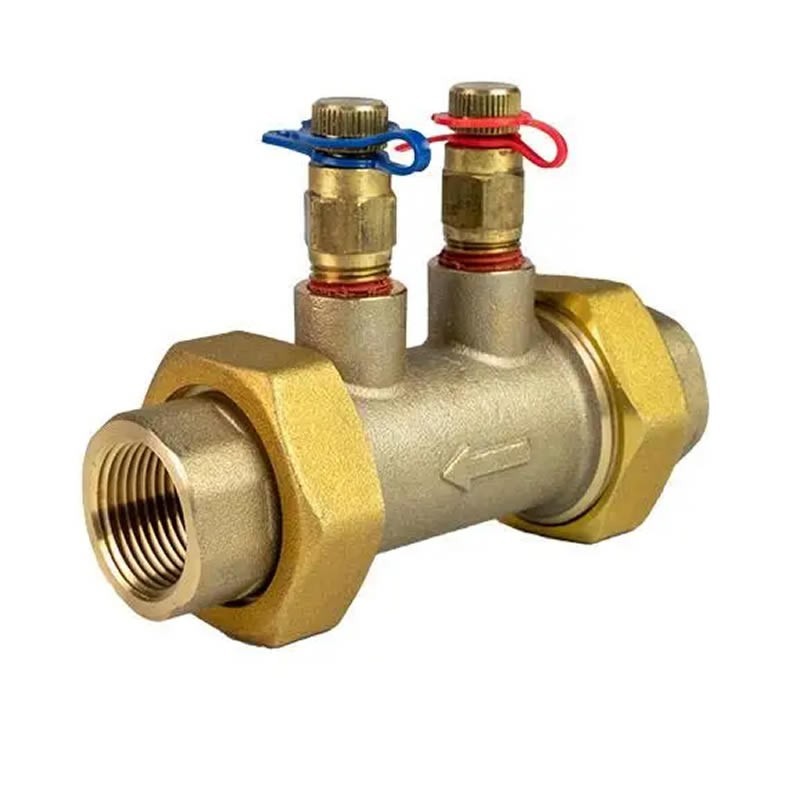

Jomar TAF Lead Free Automatic Balancing Valve Threaded Connection Union End Flow Limiter PT Ports 600 WOG
TAF
The Jomar TAF Lead Free Automatic Balancing Valve Automatic Flow Limiter, features Threaded Connection, Union End, Two pressure Test Ports, 600 WOG, Dezincification Resistant Brass Alloy and Stainless Steel Cartridge.
Available in sizes 1/2" to 1".
$197.17
$285.76
Save 31%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
Jomar TAF Lead Free Automatic Balancing Valve Automatic Flow Limiter, features:
- Dezincification Resistant Brass Alloy
- +/-5% Accuracy
- Two Pressure Test Ports
- Stainless Steel Cartridge
- Design Flow Rate of 0.5 GPM; Other Flow Rates Available Upon Request
- Single Reduction Available Upon Request
- Direction of flow labeled on valve body
- 100% Leak Tested
- 100% Made in Italy
- Wetted Surfaces Contain Less than .25% Lead Content
Pressure/Temperature Rating
- 600 WOG/325°F Max
Summary Specifications (Please see attachment for full specs.)
Size 1/2" 3/4" 1" Model TAF-AFF TAF-BFF TAF-CFF Weight (lbs.) 3.5 4.2 5.1 View Detailed Valve Specifications
Jomar TAF Specs. Jomar TAF- TAF
Data sheet
- Valve Type
- Manual Balancing
- Valve Size
- .5 (1/2") .75 ( 3/4") 1"
- Valve Temperature Range
- Up to 325°F (°C 163)
- Valve Body Material
- Brass - Lead Free
- Valve Body Style
- Full Port
- Valve Connection
- Threaded
- Valve PSI
- 600
- Valve Configuration
- 2-Way
- Valve Operation
- Manual
No customer reviews for the moment.
The Jomar TAF Lead Free Automatic Balancing Valve Automatic Flow Limiter, features Threaded Connection, Union End, Two pressure Test Ports, 600 WOG, Dezincification Resistant Brass Alloy and Stainless Steel Cartridge.
Available in sizes 1/2" to 1".
