Jomar S-200CSSG-EH Bronze Ball Valve Lead Free 2 Piece Full Port Solder S-Steel Trim 600 CWP 150 WSP BO Proof and Stem Extension
S-200CSSG-EH
Review (0)
      Jomar S-200CSSG-EH Bronze Ball Valve Lead Free 2 Piece Full Port Solder S-Steel Trim 600 CWP 150 WSP BO Proof and Stem Extension
      Jomar S-200CSSG-EH Bronze Ball Valve Lead Free 2 Piece Full Port Solder S-Steel Trim 600 CWP 150 WSP BO Proof and Stem Extension
      Jomar S-200CSSG-EH Bronze Ball Valve Lead Free 2 Piece Full Port Solder
      Move your mouse over image or click to enlarge

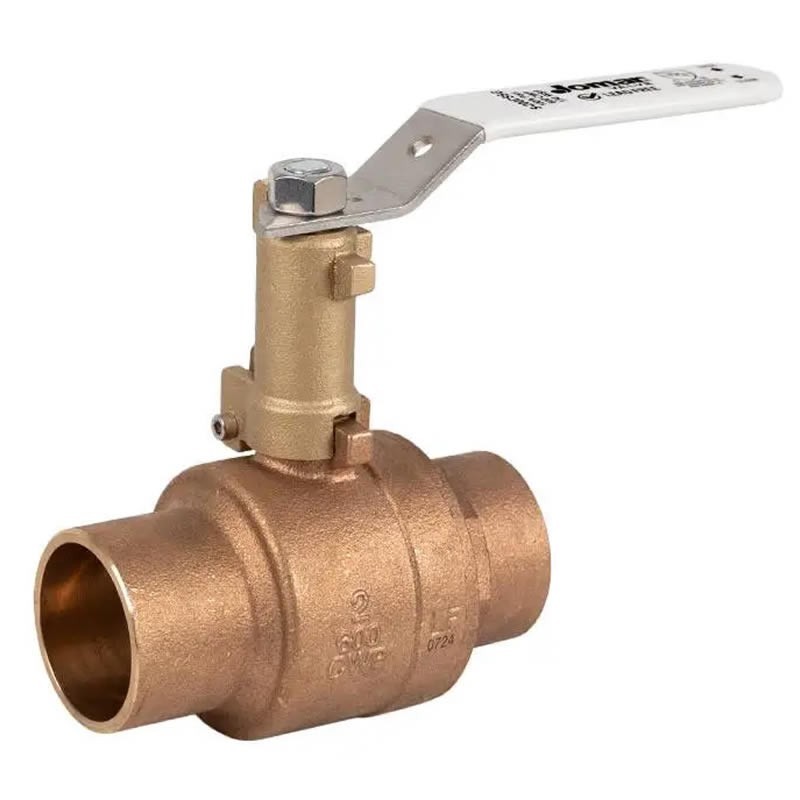

      The Jomar S-200CSSG-EH Lead Free Bronze Ball Valve features Dezincification Resistant Lead Free Bronze, Blow-out Proof Stem, 2 Piece, Stainless Steel trim, Solder Connection, Full Port and up 600 CWP, 29 in-HG Vacuum Rating and Heavy Commercial Pattern along with a Stem Extension.

      Available in sizes from 1/2" to 2".

      Jomar Valve
      $48.54
      $64.72
      Save 25%
      Quantity :

      FREE Shipping Order before 11:00 on Monday and receive it between 7/24/25 and 7/28/25 with FREE Shipping

      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Jomar S-200CSSG-EH Lead Free Bronze Ball Valve Valve features:

        • Dezincification Resistant Lead Free Bronze
        • Stainless Steel ball and stem
        • Heavy Commercial Pattern
        • Blow-out Proof Stem
        • 100% Leak Tested
        • Stem Extension
        • IAPMO Certified: NSF 61 & NSF 372 & NSF 14
        • 29 in-Hg Vacuum Rating
        • Wetted Surfaces Contain Less than .25% Lead Content
        • Soder Connection
        Summary Specifications (Please see attachment for full specs.)
        Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2"
        Part number 200-413SSG-EH 200-414SSG-EH 200-415SSG-EH 200-416SSG-EH 200-417SSG-EH 200-418SSG-EH
        Pressure/Temperature Rating 100 PSIG at 300°F
        600 PSIG at Ambient        		 100 PSIG at 300°F
        600 PSIG at Ambient        		 100 PSIG at 300°F
        600 PSIG at Ambient        		 100 PSIG at 300°F
        600 PSIG at Ambient        		 100 PSIG at 300°F
        600 PSIG at Ambient        		 100 PSIG at 300°F
        600 PSIG at Ambient
        Weight (lbs.)
        		 .72 1.3 2 2.6 4.2 7
        Certifications/Approvals

        *IAPMO Certified

        • NSF/ANSI/CAN 61-8 2018
        • NSF/ANSI 372-2016
        • IAPMO/ANSI Z1157-2014
        • ASME A112.4.14/CSA B125.14:22
        • NSF/ANSI 14-2016

        Approvals

        • ASME/ANSI B16.18
        • Meets MSS SP-110
        View Detailed Valve Specifications
        Jomar S-200CSSG-EH Specs.
        Jomar S-200CSSG-EH

      • Jomar Valve
        S-200CSSG-EH

        Data sheet

        Valve Type
        Ball Valve
        Valve Size
        .5 (1/2") .75 ( 3/4") .375 (3/8") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
        Valve Temperature Range
        Up to 375°F (°C 190)
        Valve Body Material
        Brass - Lead Free
        Valve Body Style
        Full Port
        Valve Connection
        Solder
        Valve PSI
        100 to 600
        Valve Configuration
        2-Way
        Valve Operation
        Manual
